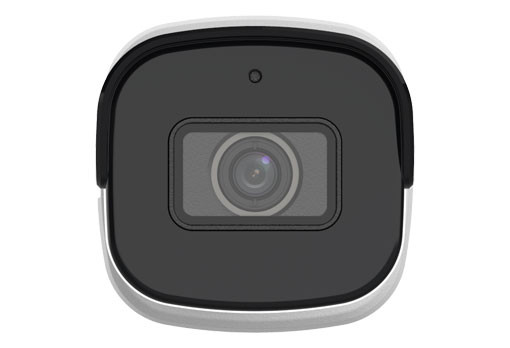

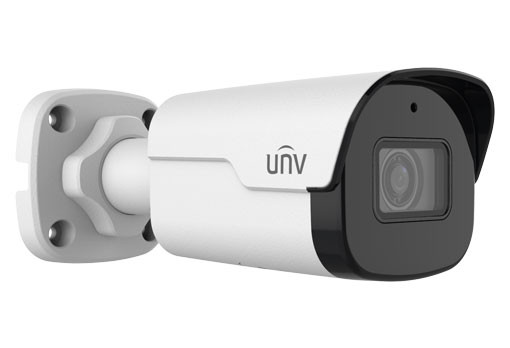

Uniview IPC2124SS-ADF28(40)KM-I0 – 4MP LightHunter Intelligent Mini Bullet IP Camera (2.8/4.0mm lens variant)

$340.00
Usually Ships: 1-2 Business Days
Low Prices
Superior Selection
In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Optics

1/2.7’’, Powered by lighthunter

SmartIR, up to 50m (164 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

2688*1520@30fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Built-in MIC

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

IP67 ingress protection

  IPC2124SS-ADF28KM-I0 IPC2124SS-ADF40KM-I0
Camera
Sensor 1/2.7", 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
Iris Fixed aperture
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0(206.7ft) 25.2(82.7ft) 12.6(41.3ft) 6.3(20.7ft)
4.0 90.0(295.3ft) 36.0(118.1ft) 18.0(59.1ft) 9.0(29.5ft)
Field of View (H) 95.8° 78.9°
Field of View (V) 51.5° 40.8°
Field of View (D) 124.5° 97.0°
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour:0.002lux (F1.6, AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
S/N >55dB
IR Range Up to 50m (164 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
Frame Rate Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas(8 blacks/8 mosaics)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Intelligent
Smart intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Exception Detection And Statistics Object Removed, Object Left Behind
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
Ezview
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio Build-in Mic
Network 1 x RJ45 10M/100M Base-TX Ethernet
Certifications
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General

Power
 		 DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 5W
Dimensions (Ø x H) Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’)
Net Weight 0.4kg(0.88lb)
Material Metal
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection 2KV
