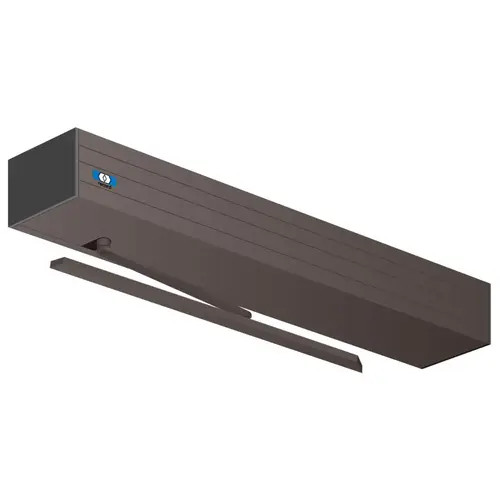

Record-USA SS8252D1T3T 72 SimpleSwing Heavy Duty Automatic Double Door Operator – 72" Header, Slide Track Arm, 90° Swing
The Record-USA SS8252D1T3T 72 is a heavy-duty automatic double door operator from the SimpleSwing 8200 Series, engineered for reliable performance in commercial and institutional entrance automation. It features a 72-inch header and is designed to operate double swing doors smoothly and efficiently in high-traffic environments.
This model uses an electromechanical drive system powered by a 1/4 HP motor and a microprocessor-based control unit that manages the full opening and closing cycle for consistent, safe operation. It is configured for push-side surface mounting and uses a slide track arm system to deliver up to a 90° opening angle, ensuring controlled and smooth pedestrian flow.
The SS8252D1T3T 72 is built for durability and compliance with modern access requirements, including ADA standards and UL certification. It integrates seamlessly with access control hardware such as electric strikes, making it suitable for commercial buildings, hospitals, airports, and public facilities.
Designed for long service life in demanding environments, this operator ensures reliable automated door performance with reduced manual effort and enhanced safety.
Key Features
- Heavy-duty automatic double door operator
- 72" header surface-mounted system
- Slide track arm configuration
- Supports double door entrances
- 90° opening angle
- 1/4 HP electromechanical motor
- Microprocessor-controlled operation
- Push-side mounting design
- ADA compliant and UL listed
- Compatible with access control systems and electric strikes
- Designed for high-traffic commercial use
Technical Specifications
- Model: SS8252D1T3T 72
- Series: SimpleSwing 8200
- Operator Type: Electromechanical double door operator
- Header Size: 72 inches
- Door Configuration: Double door
- Opening Angle: 90°
- Voltage: 120 VAC
- Motor: 1/4 HP
- Mounting: Push side, surface mounted
- Arm Type: Slide track arm
- Application: Commercial automatic door systems
