DKS DoorKing 1830-186, Voice Over IP (VoIP) Adapter

$322.00

SKU:: 1830-186

Usually Ships: 1-2 Business Days

Low Prices

Superior Selection

In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Description
Resources
Reviews

Brand	Model Number
DoorKing (DKS)	1830-186
DoorKing (DKS)	Voice Over IP (VoIP) Adapter

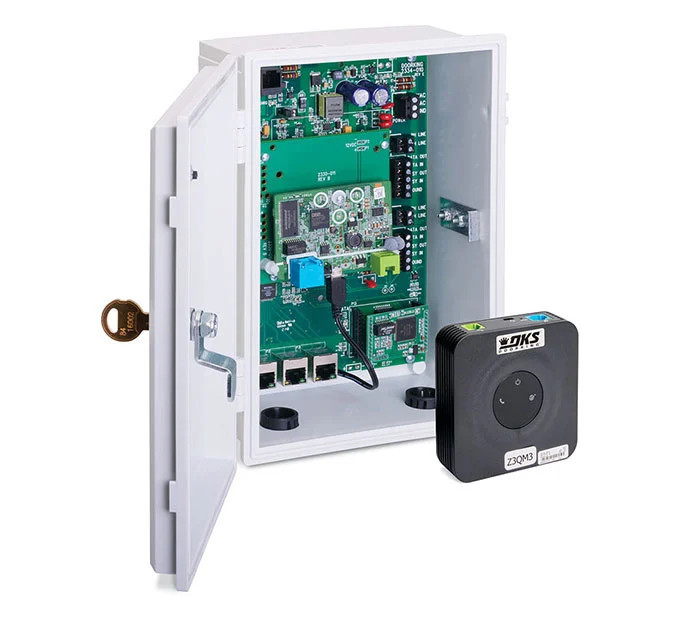

DKS DoorKing 1830-186, Voice Over IP (VoIP) Adapter

The Wired Internet Connection Option for Entry Systems

VoIP is a turnkey, wired solution for connecting System Managers and Users to their Access Control System.

VoIP (Voice over Internet Protocol) is a general term for the technology used to provide Voice communication over an Internet connection. This technology, like our Cellular connection option, has replaced the original POTS (Plain Old Telephone Service) copper line connection that has been phased out.

While the 2112 eVolve Entry System has built-in VoIP compatibility for Voice and Remote Programming, the other eVolve Series Entry Systems, 1830 Series, Access Plus, and Standard/1812 Series Entry Systems can be fitted with an optional VoIP Adapter to provide Voice communication to all other DKS Entry Systems* through the local Internet connection powered by a DKS Internet Service subscription. The VoIP connection also enables completely remote programming for DKS Entry Systems in the eVolve, 1830 Series, and Access Plus Series using one of the DKS Easy Connect Programming options. A VoIP connection is a great option for locations that have access to an internet line near the Entry System location, and for users who want to update from their original POTS connection – plus, it’s more affordable than a traditional business line. IMPORATNT! This VoIP adapter CANNOT BE USED TO MAKE 911 CALLS!

*Excludes the 1816 Intercom System.

Specifications

Internet Connection (Plug & Play)

Voice and Programming (wired connections)
DKS Internet Option™ (subscription based service)
Requires 1830-186 Network Adapter for data
Requires 1815-578 VoIP adapter for voice or use the 2334-080 for 1830 Series systems or the 2334-081 for Access Plus systems. The 2334 combines the network adapter and the VoIP adapter into a single system to simplify installation. IMPORTANT: When using the 2334-080 with 1830 Series systems, the 1830 circuit board MUST be REV Z or higher.
These options are Plug & Play for LAN and WAN connections using the DKS Internet subscription service

Internet Connection (Manual IP Configuration)

Voice and Programming (wired connections)
Manual setup – requires 1830-185 Network adapter
Manual setup required: determine Default Gateway, set your IP address, setup Port Forwarding, configure Firewall for access, order Static IP address from internet provider or setup DDNS host account
VoIP provider subscription service & hardware required for voice

Connection options accessories:

1830-185 TCP/IP to RS232 Network Connection (manual setup)
1830-186 TCP/IP to RS422 Network Connection (automatic setup – requires IM Server Client subscription
1508-055 RS232 to RS422 Conversion
1815-037 USB to RS232 Adapter
1818-040 RS232 Connecting Cable
