SDC AUTOS136V, AUTO Series Single Door Operator, Push Arm, 20mm Spindle, 36” Door, 39” Housing, 628 Aluminum
- SKU:
- AUTOS136V
SDC AUTOS136V, Low Energy Swing Door Operators Single, Push Arm, 20mm Spindle, 36” Door, 39” Housing, 628
SDC's Auto Entry-Control low-energy swing door operators are designed for applications requiring ADA compliance or user convenience.
SDC’s operator is built with a state-of-the-art microprocessor-based unit that is self-tuning and self-learning while offering nonhanded operation, full-mechanical stops, and a variety of interface options for sensors, push-plates, fire alarms and electrified locks.
SDC’s operator is belt driven with a combination of gears and pulleys which requires less torque, less power, absorbs more abuse, and is quieter than other automatic door openers while complying with all US and Canadian ADA requirements. Onboard diagnostics simplifies troubleshooting for ease of installation and all SDC operators can be easily configured for surface mounted push/pull applications. ANSI certified not required for initial installation.
STANDARD FEATURES
- Single button, self-tuning setup
- Extremely quiet operation
- Momentary back pressure relief
- Obstruction detection
- Power close option
- Hold-open timer
- External function switches
- Built-in 1 amp+ power supply*
- Onboard lock sequencing
- Preset dip switches for alternative functions
- Customizable programming for system design
- USB port to easily upload customized programming
- Non-handed
- Push or pull compatible
- 20mm spindles included
- High traffic use

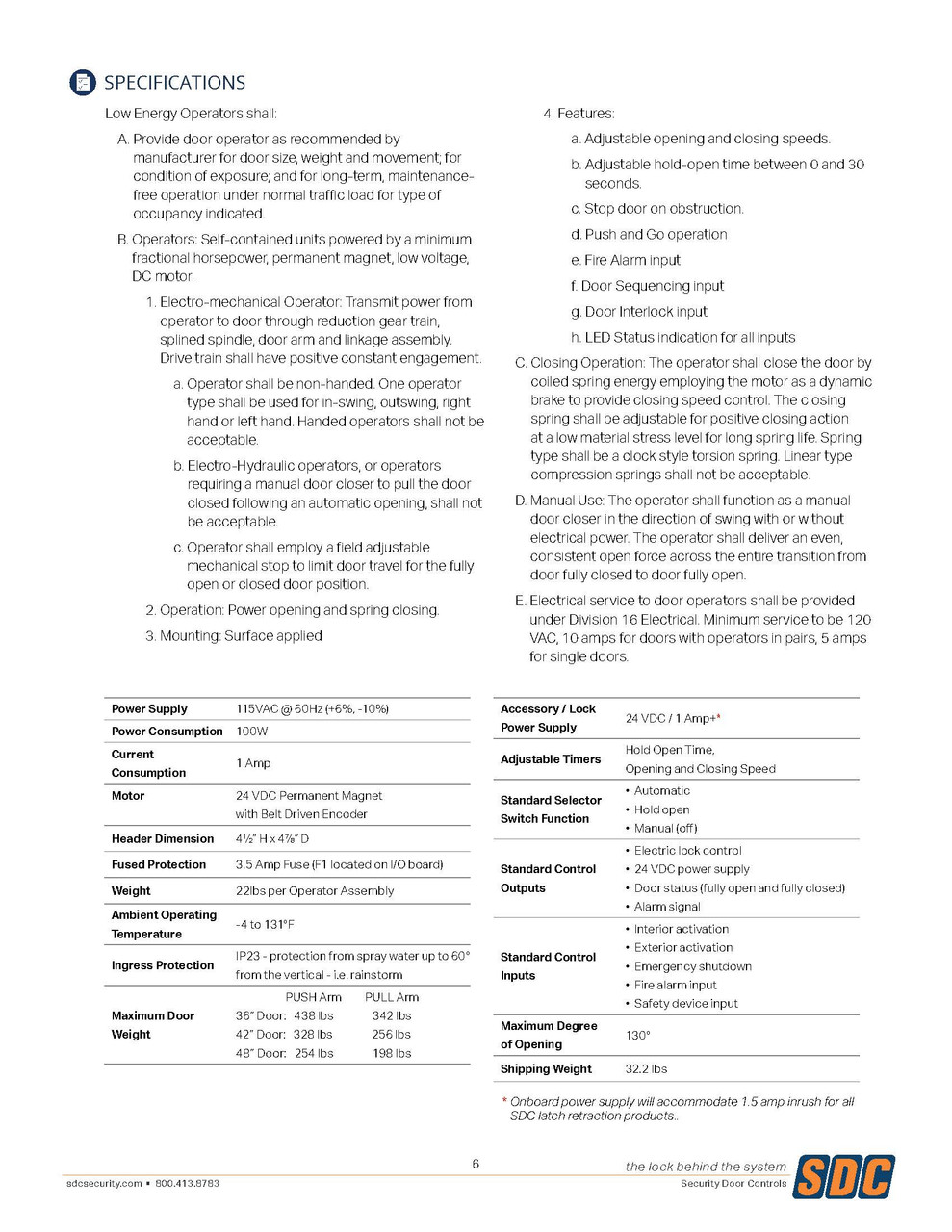

Table of Specifications
|
Power Supply |
115VAC @ 60Hz (+6%, -10%) |
|
Power Consumption |
100W |
|
Current Consumption |
1 Amp |
|
Motor |
24 VDC Permanent Magnet with Belt Driven Encoder |
|
Header Dimension |
41/2” H x 47/8” D |
|
Fused Protection |
3.5 Amp Fuse (F1 located on I/O board) |
|
Weight |
22lbs per Operator Assembly |
|
Ambient Operating Temperature |
-4 to 131°F |
|
Ingress Protection |
IP23 - protection from spray water up to 60° from the vertical - i.e. rainstorm |
|
Maximum Door Weight |
PUSH Arm PULL Arm 36” Door: 438 lbs 342 lbs 42” Door: 328 lbs 256 lbs 48” Door: 254 lbs 198 lbs |
|
Accessory / Lock Power Supply |
24 VDC / 1 Amp+* |
|
Adjustable Timers |
Hold Open Time, Opening and Closing Speed |
|
Standard Selector Switch Function |
• Automatic • Hold open • Manual (off) |
|
Standard Control Outputs
|
• Electric lock control • 24 VDC power supply • Door status (fully open and fully closed) • Alarm signal |
|
Standard Control Inputs |
• Interior activation • Exterior activation • Emergency shutdown • Fire alarm input • Safety device input |
|
Maximum Degree of Opening |
130° |
|
Shipping Weight |
32.2 lbs |
