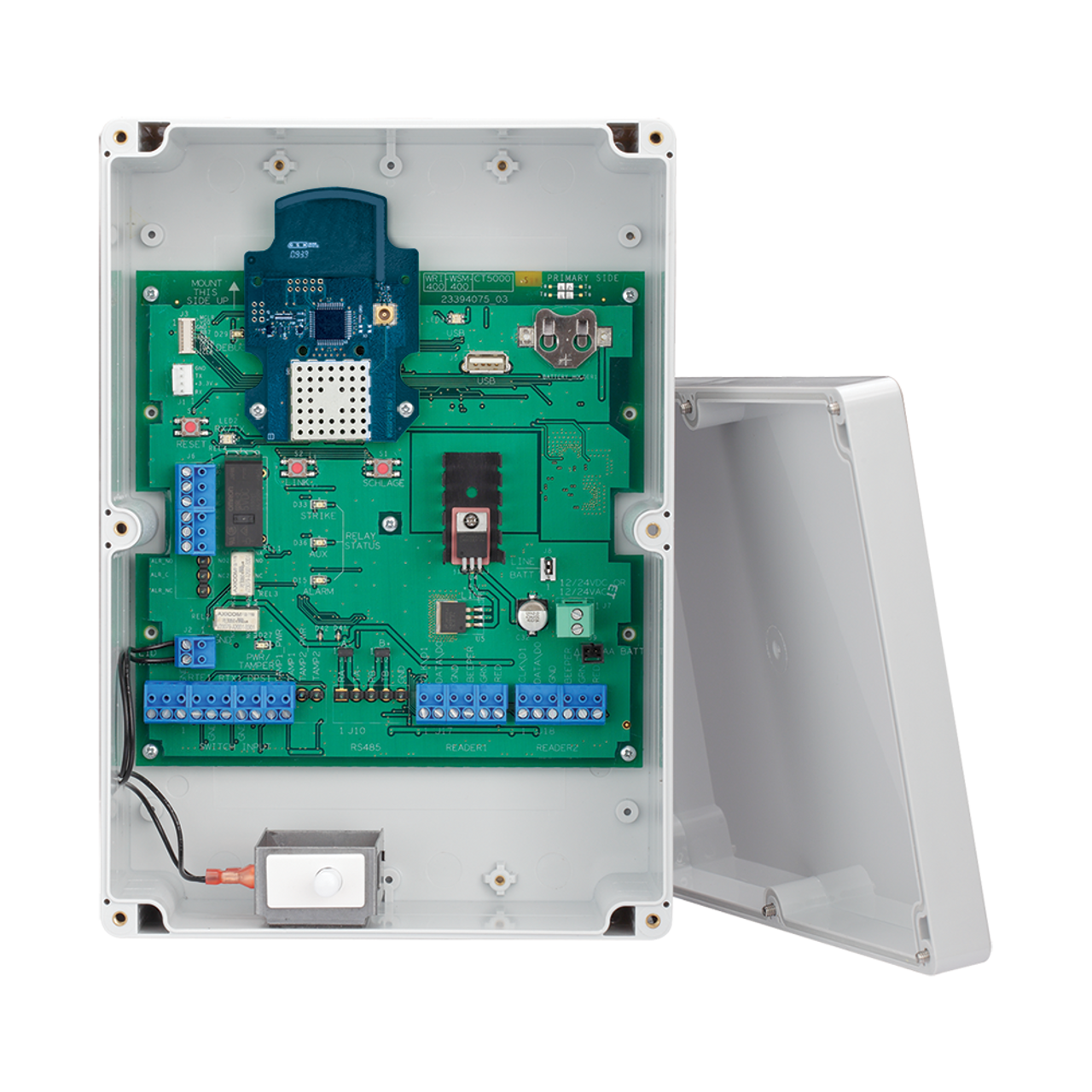

Schlage WRI400, Outdoor Wireless Reader Interface, Compatible with Wiegand or Clock & Data, Includes Weatherproof Enclosure, 12/24 VDC
- SKU:
- WRI400
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.
Schlage WRI400
The Wireless Reader Interface (WRI400) is a networked access point controller that provides wireless connectivity to traditionally wired electronic access control components including credential readers, strikes, door position and request-to-exit switches.
It can save time and money on installation by reducing wiring to the door from a panel interface module. It also plays an important role in wirelessly controlling distant access points such as gates and elevators, or hard-to-wire openings in remote locations or historic buildings.
Two Form C relays on the WRI400 allow it to control more than one device on an opening such as a credential reader combined with an auto operator. Wireless transmission of information is done via 900 MHz back to a panel interface module (PIM) hardwired to an access control panel.
Since the WRI400 is built on an open architecture platform, it is designed for seamless integration with most access control systems.
Features & Benefits:
Visual LED indications – WRI400 cover is
monitored by a tamper switch
• Encryption – Each RF transmission is
encrypted with AES-128 bit keys
• Reader interfaces support:
॰ Wiegand (data1/data0) up to 255 bits
॰ Magnetic stripe (Clock & Data) up to
255 bits
• Form C relay outputs:
॰ Strike relay
॰ Auxiliary output relay
• Signal inputs:
॰ Request-to-enter
॰ Request-to-exit
॰ Door position switch
॰ Reader tamper 1
॰ Reader tamper 2
• Certification: NEMA 1, 4, 4X, 6; UL 294, FCC
Part 15; Industry Canada (IC), RoHS
WRI400 Specifications
Frequency range: 902-928 MHz
Modulation: 900 MHz spread spectrum, direct sequence,10 channels
RF interference avoidance: Optional dynamic channel switching
Transmission/encryption: AES-128 bit key (optional)
Data rate: RF: 40 kbps
Credential verification time: < 1 second1
Communication range: Up to 200 ft (61 m) normal building construction Up to 1000 ft (305 m) clear line of sight
(See ANT400-REM data sheet for increasing distance)
Power supply requirements: 12 VDC or 24 VDC; 500 mA maximum current
Operating temperature: -31°F (-35°C) to 151°F (66°C)
Operating humidity: 0 - 100% condensing
Dimensions: (H x W x D) 10.43" x 7.28" x 3.79" (26.49 cm x 18.49 cm x 9.63 cm)
Certifications: NEMA 1, 4, 4X, 6; UL 294; FCC Part 15; Industry Canada (IC); RoHS
