Schlage SERIII-W-GR, Scramble Keypad, Weatherized for Outdoor Use, Wiegand Output, 8-14 VDC, Gray
- SKU:
- SERIII-W-GR
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

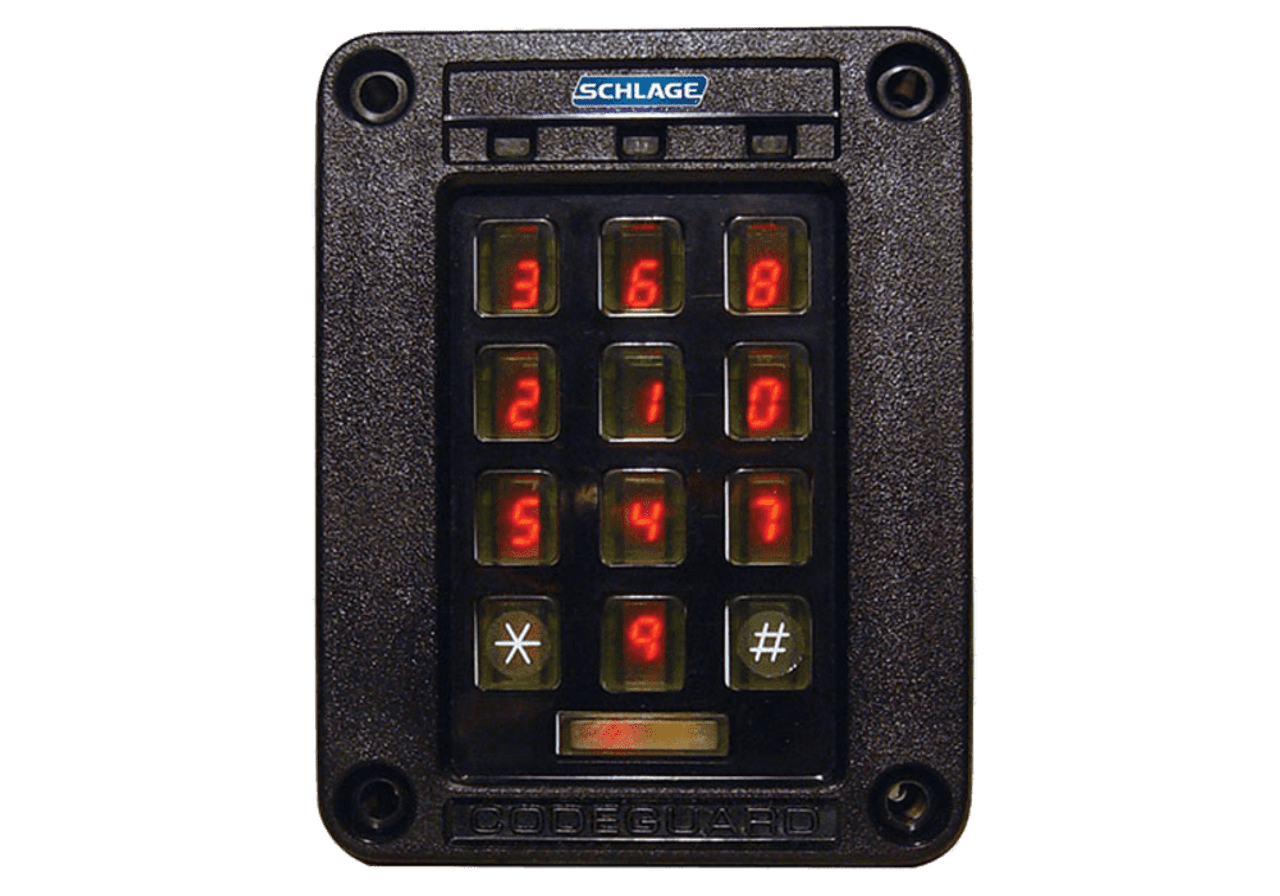

Schlage SERIII-W-GR, Scramble Keypad
The SERIII scramble keypad is a keypad reader designed to prevent onlookers from detecting the PIN code being entered. The LED’s display a randomly allocated set of numbers from 0 to 9. The position of the numbers change every time the keypad is activated. Only the user standing directly in front of the keypad can see the scrambled digits.
SERIII-W Specifications
Dimensions: (H x W x D) 5.39" x 4.17” x 2.05”
Input voltage: 8 - 12 VDC
Input current: 500mA max.
Operating temperature: 5°F to 122°F
Weight: 16.76 oz
Cable distance (Wiegand): 500' with 22AWG 6 conductor stranded with overall shield
Features & Benefits
• Very narrow viewing angle of the lighted, scrambled digits
• The membrane keypad is extremely durable
• Random allocation of digits ensures even wear to the keys
• Individual PIN codes can be up to 9 digits in length
• The SERIII has a weatherproof rating of IP65
• An audible alarm signals when a button is depressed
• Robust polycarbonate enclosure
• The unit is equipped with power-up diagnostics and self-test routine
• The SERIII is provided with Wiegand communication protocol
• Over 3.6 million unique permutations are available
• Terminal connection on the rear of the unit
