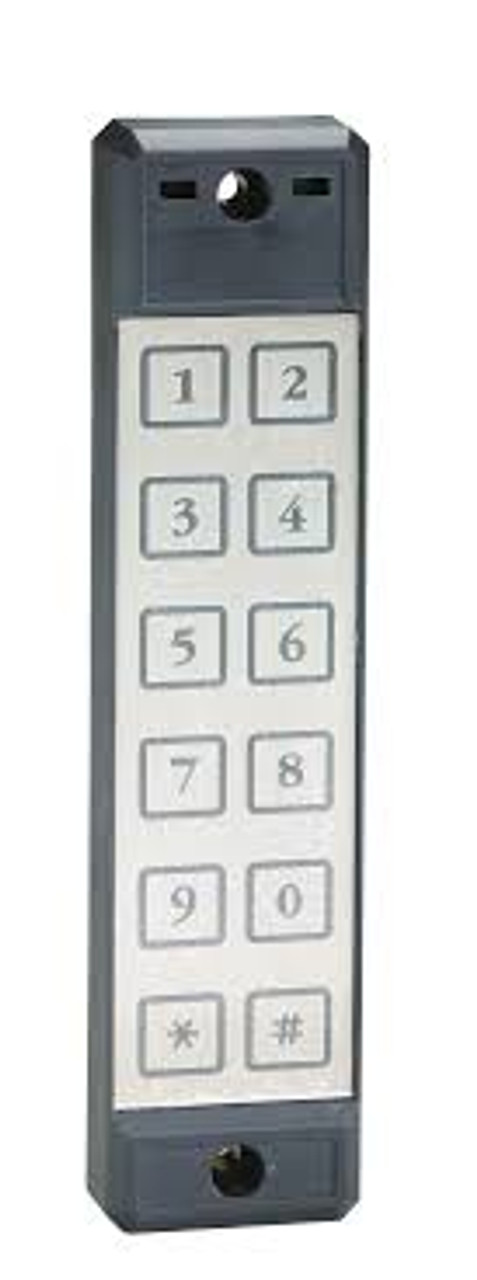

Schlage SEKPDMWG, Electronic Keypad, Mullion Mount, Stainless Faceplate, Weatherized for Outdoor Use
- SKU:
- SEKPDMWG
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.
Schlage SEKPDMWG, Electronic Keypad, Mullion Mount, Stainless Faceplate with Keypad, Weatherized for Outdoor Use, Wiegand output.
The fully encapsulated electronic keypad can be used by itself or next to another reader device for additional security. Its stainless steel construction is ideal for indoor or outdoor applications. The two designs, single gang box or the mullion mount style, give it the diversity needed for any application.
• Field selectable keypad configurations
• SEKPDMWG mounts to any mullion style frame
• No moving parts to replace
• Heavy-duty piezoelectric keypad
• Industry standard outputs
• Billion Cycle Switch Technology™
• l\lo Moving Parts
• All Weather -40°C to +70°C
• Vandal resistant design
• Encapsulated electronics assembly
• Single gang or mullion
• Stainless steel
• Designed and manufactured in the USA
SEKPDMWG Specifications
Dimensions: 7.125” x 1.75” x .75”
Power supply: 5-12 VDC (field selectable)
Operating temperature: -40°F to 160°F
Weight: 4.4 oz
Material: 316L stainless steel
Standby current draw: 5V-20mA
You may also like this
Schlage

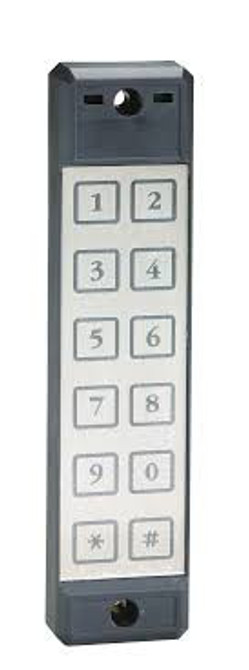

Schlage SEKPDWG, Electronic Keypad, Stainless Faceplate, Weatherized for Outdoor Use
Schlage
Schlage SEKPD8G, Electronic Keypad, Stainless Faceplate, Weatherized for Outdoor Use. 8 Bit Word
Linear

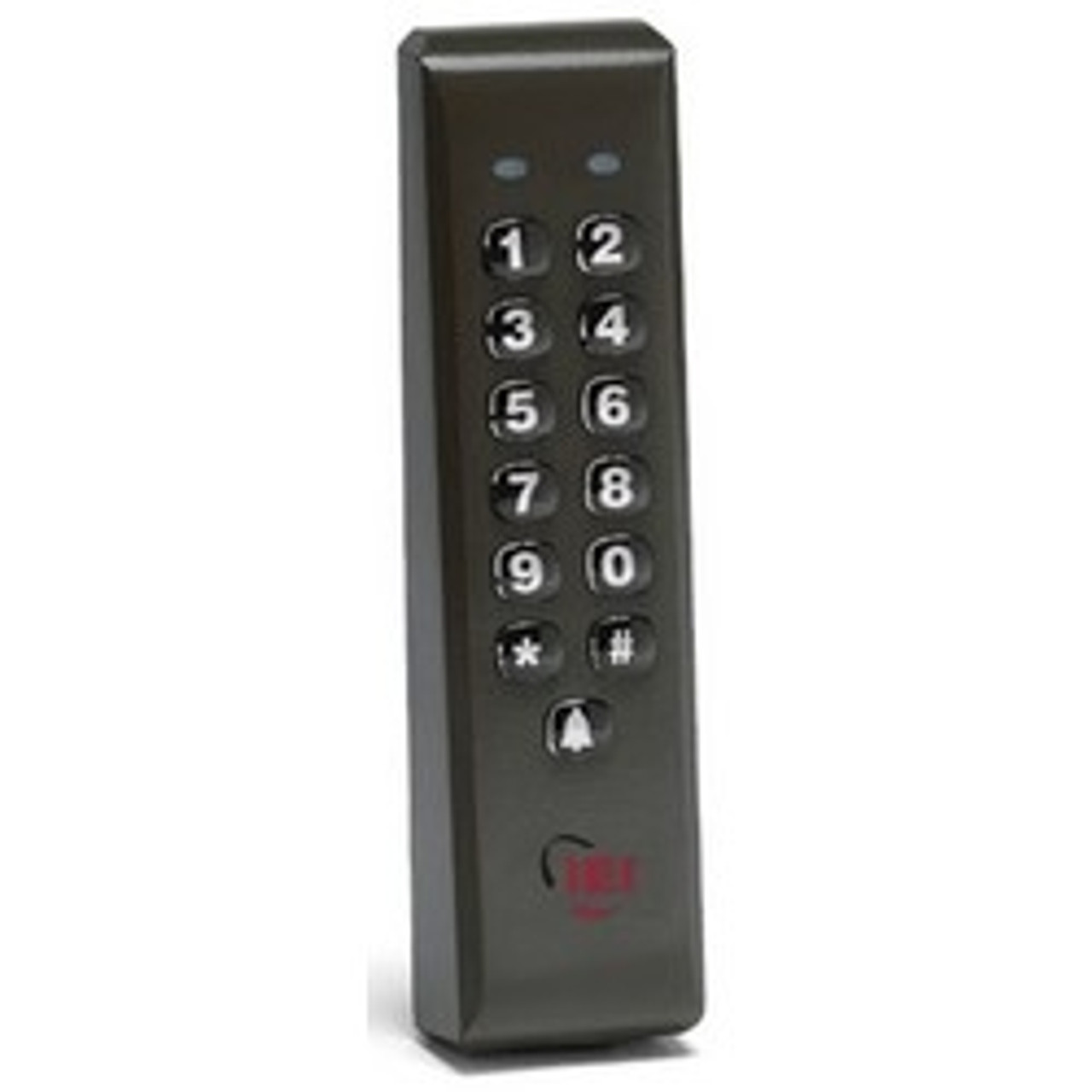

Linear 212iLM-AL, Indoor / Outdoor Mullion-mount Weather Resistant Keypad - Aluminum
