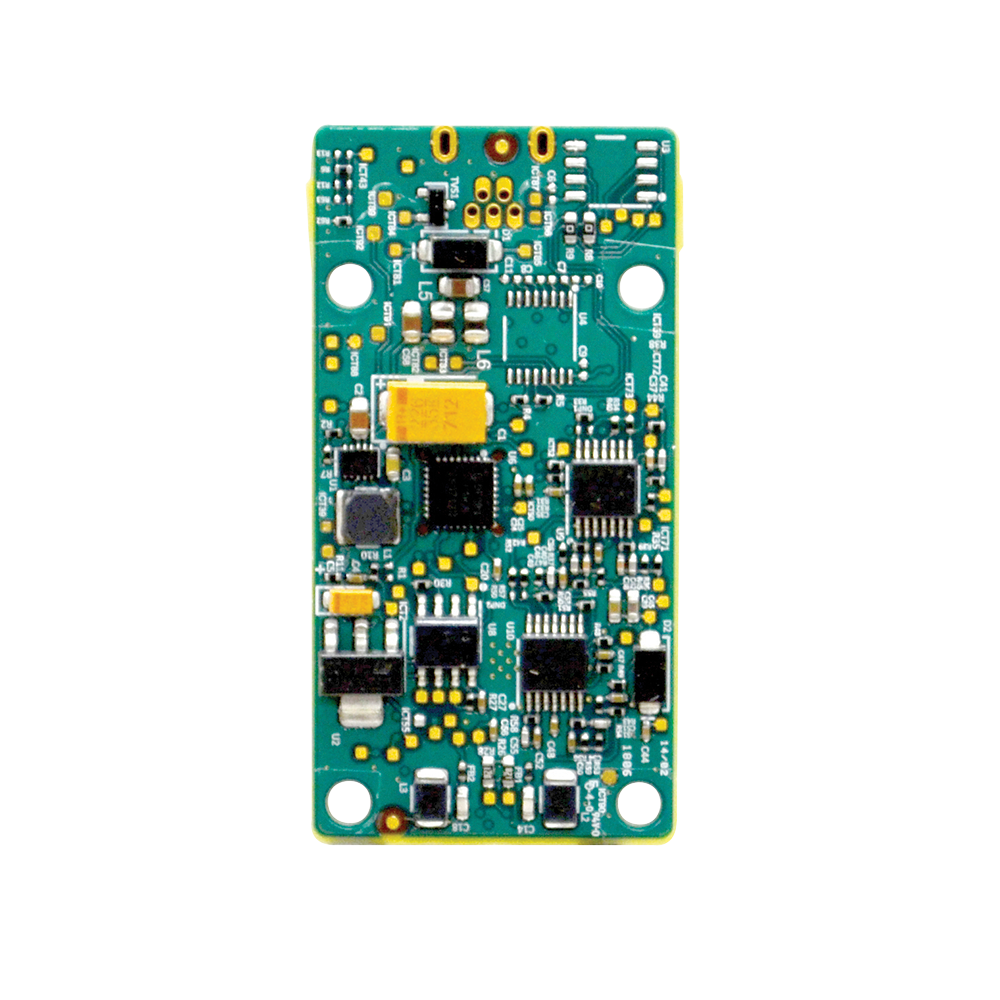

Schlage OEM200-TTL, Module

Today’s customers want to extend the use of credentials beyond physical access control to maximize their investment and
provide the added convenience of using a single credential for multiple applications. To help meet customers’ needs, the OEM 200 module can be embedded into third-party products so that solution providers can seamlessly support RFID technology as part of their offering. An 80mm antenna is available in a multi-technology version that combines 125 kHz proximity and 13.56 MHz smart card technology. The multi-technology antennas interface with Schlage® smart credentials (MIFARE Classic®, MIFARE Plus® and MIFARE® DESFire® EV3) and can read the card serial numbers (CSN) of a variety of smart cards from other manufacturers. Additionally, the OEM 200 module is already NFC compatible and able to support NFC and NFC wallet-based mobile credentials. The OEM 200 has been designed for easy integration, but should you need any assistance, our knowledgeable application engineering team is ready to assist you with any design or technology questions you may have.

• Multi-technology version: Reads 125 kHz proximity credentials and 13.56 MHz smart credentials
• Supports NFC and NFC wallet-based mobile credentials or similar
• Wiegand and UART-TTL output available for simple interface with most third-party products
• Antenna connects easily to main board with flat flexible cable (FFC) (provided)
• LEDs for debugging and diagnostics
• Allegion integration support

OEM200 Specifications

Dimensions: Main board, 1.11" x 2.165" x 0.39" (28.0mm x 55.0mm x 9.9mm)
80mm antenna board, 1.35" x 3.125" x 0.14" (34.3mm x 79.4mm x 3.4mm)
125 kHz Technologies: Schlage and XceedID proximity
GE/CASI ProxLite®
HID® Proximity
AWID® Proximity
LENEL® Proximity
13.56 MHz Technologies: Schlage MIFARE Classic, MIFARE DESFire EV1 (with PACSA enabled) or MIFARE Plus
Schlage NFC mobile credentials
PIV (FASC-N output options)
PIV-1 (GUID output options)
CSN for HID iCLASS®, ISO 15693, ISO 14443

Electrical specifications:

Operating temperature: -31 to 149°F (-35 to 65°C)
Frequency: 125 kHz and 13.56 MHz
Voltage input: 5-16V
Average system current: 50 mAmps (180 mAmps max)
Communication: Wiegand or UART-TTL
