Schlage MTMS15, Multi-Technology Magnetic Stripe Reader
- SKU:
- MTMS15
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

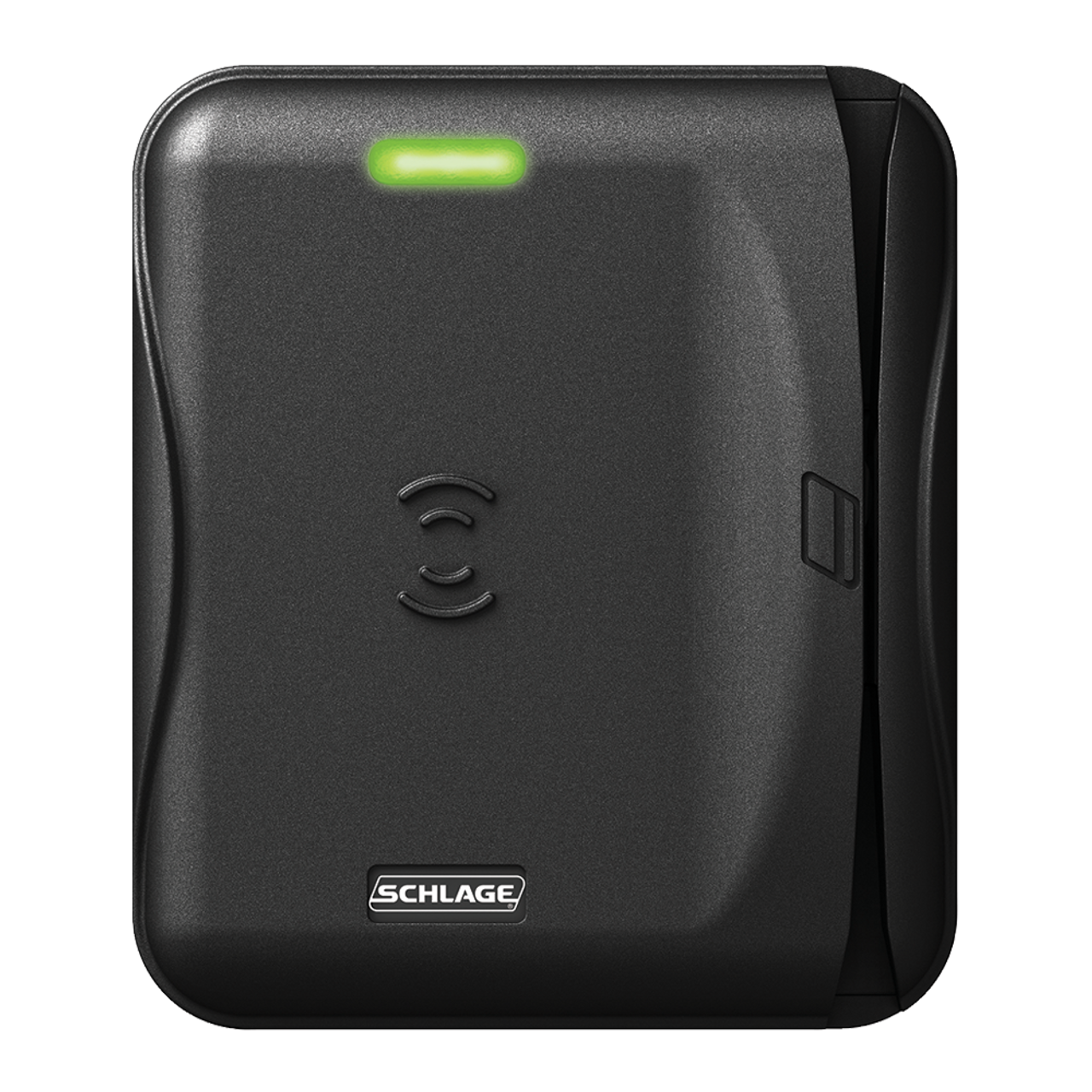

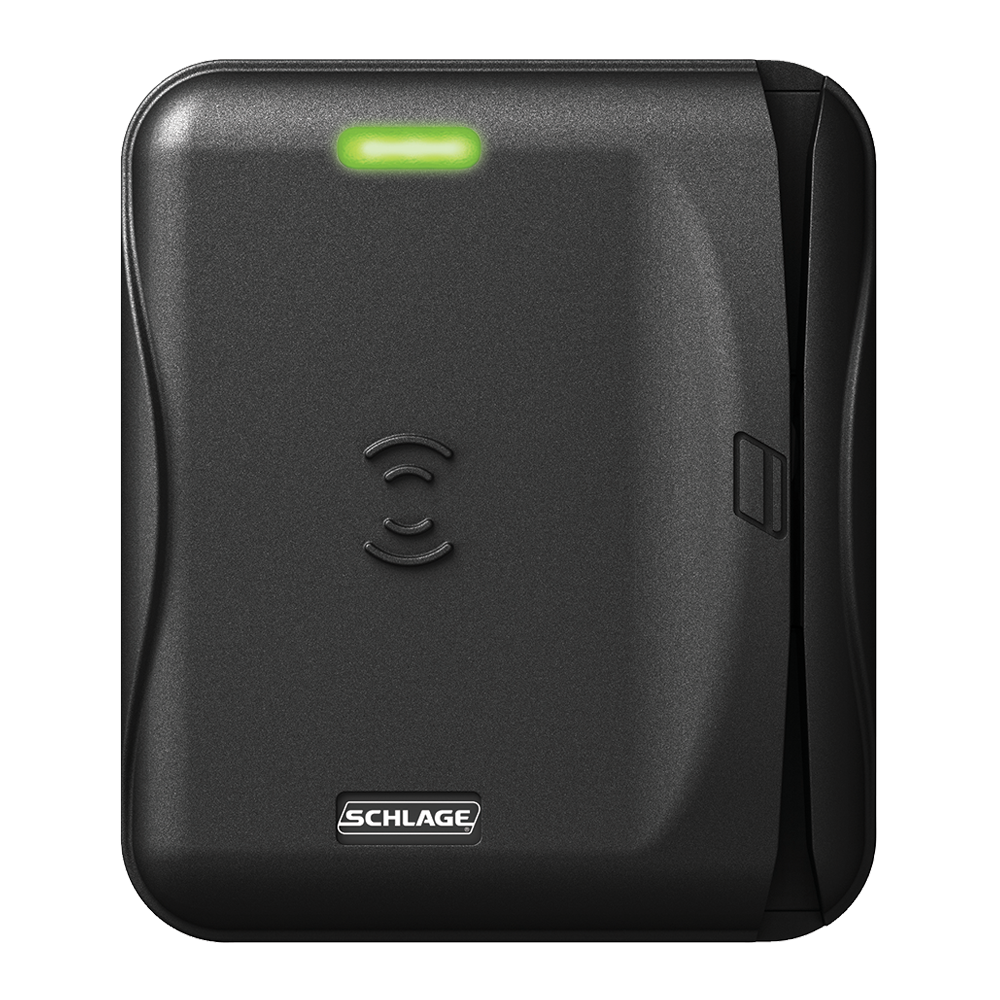

The Schlage MTMS15 is a versatile, multi-technology access control reader that combines magnetic stripe reading, proximity, and smart card capabilities in a single device. This integration allows for a seamless transition between various credential technologies, making it ideal for facilities aiming to upgrade or diversify their access control systems. The reader supports multiple 125 kHz and 13.56 MHz technologies, including Schlage MIFARE®, and is compatible with NFC mobile credentials on both iOS and Android platforms.
Key Features:
-
Multi-Technology Compatibility: Supports magnetic stripe cards, 125 kHz proximity cards, 13.56 MHz smart cards, and NFC mobile credentials, providing flexibility in credential management.
-
Open Architecture Design: Allows for easy integration into existing access control systems, accommodating gradual transitions to newer technologies.
-
Durable Construction: Rated IP65, making it suitable for both indoor and outdoor installations.
Specifications:
-
Frequency: 125 kHz and 13.56 MHz
-
Voltage Range: 5–28 VDC
-
Current Requirements: Average 120 mA; Peak 230 mA
-
Read Range:
- Proximity: Up to 5 inches (12.7 cm)
- MIFARE Classic: Up to 4 inches (10 cm)
- MIFARE Plus: Up to 1 inch (2.5 cm)
- MIFARE DESFire EV1/EV3: Up to 2 inches (5.1 cm)
- PIV Credential: Up to 2.5 inches (6.5 cm)
-
Output Protocols: Wiegand, Clock & Data, RS-485 (OSDP)
-
Physical Dimensions: 5.1 inches (H) x 3.25 inches (W) x 0.76 inches (D)
-
Operating Temperature: -40°F to 158°F (-40°C to 70°C)
The Schlage MTMSK15 is an excellent choice for organizations seeking a comprehensive and adaptable access control solution that supports a wide array of credential technologies, enhancing both security and user convenience.
