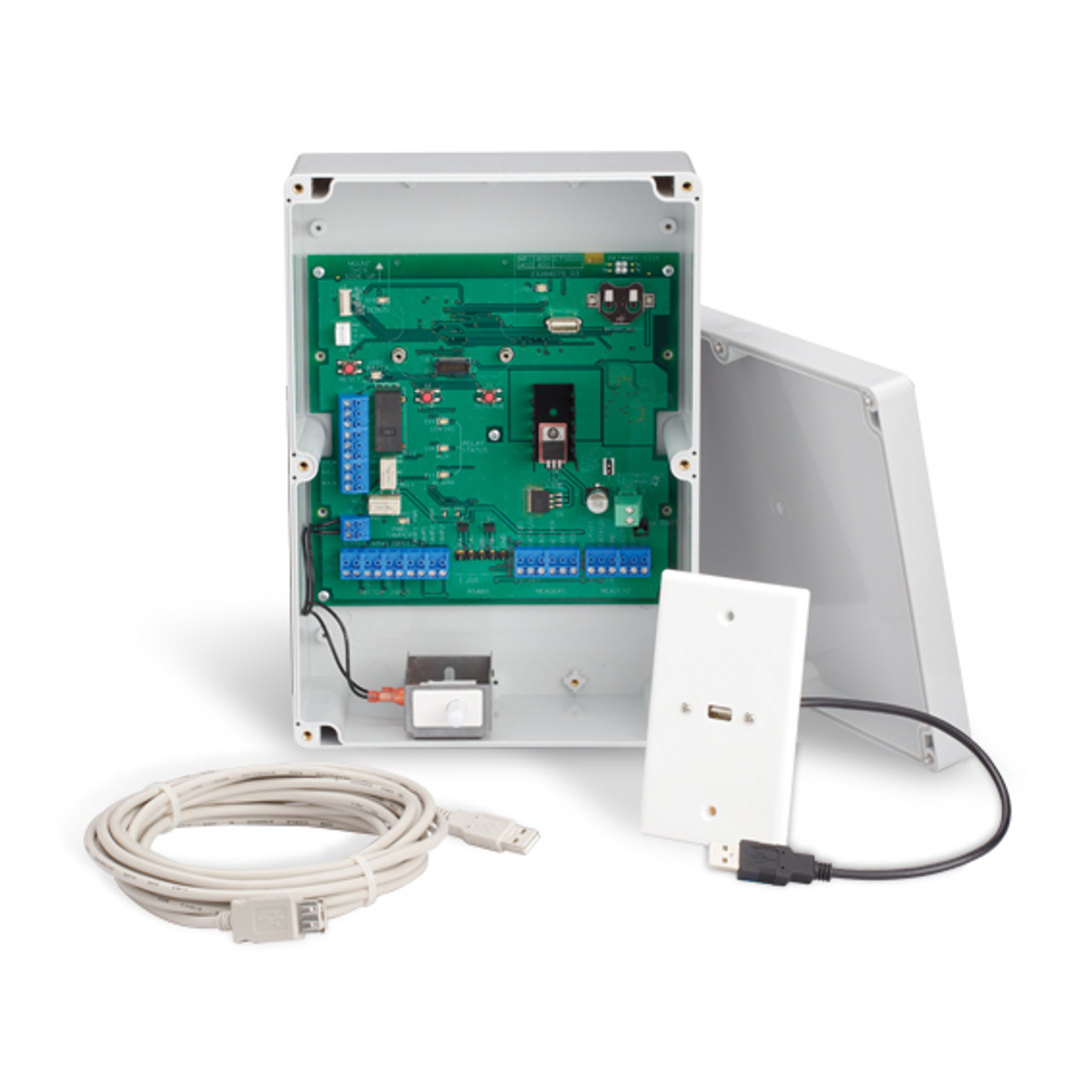

Schlage CT5000
The CT5000 is an offline single opening controller designed for applications where the security and convenience of electronic access control is desired, but application of an electronic lock may not be practical. It is an ideal solution for narrow stile aluminum store fronts because it can work with a variety of readers, as well as interface with peripheral devices such as automatic operators, electric strikes, and exit devices.
The CT5000 is compatible with many brands and types of credential technologies including magnetic stripe, 125 kHz proximity, and 13.56 MHz smart cards. It also supports a variety of card functions including: normal, toggle, freeze, pass through, construction, lockdown and card + PIN applications.
As a complement to your facility’s portfolio of CO Series and AD Series devices and networked readers, CT5000 is also capable of upgrade should your needs change to a wireless networked solution.
With the addition of a networked communication board and upgraded firmware, the CT5000 becomes a wireless reader interface capable of communicating via 900MHz signal to an AD Series PIM400. As a wireless reader interface, it can connect to your networked access control system, eliminating the need to run additional wires to the door, saving you time and money on installation.
Configuration options
- 3 form C relay outputs and 3 inputs that can include door position and request to exit
- Configure to fail safe or fail secure
- Supports up to 2 parallel Wiegand or Clock & Data reader inputs on a single opening
User verification
- Capable of credential verification <1 second
- Up to 5,000 users/audits depending on access control software
Programming interface
- Manual programming with compatible keypad
- Schlage Utility Software (SUS) with compatible Android device transfers programming information from computer to lock using the SUS-A cable connection
- 15’ remote connection point cable with wall plate included
- Schlage Express PC-based software or Software Alliances member solutions provide access control management for users, audits and locks
Additional
- Operating temperatures: -31 °F to 151 °F (-35 °C to 66 °C)
- Operating humidity: 0 - 100% condensing
You may also like this
Schlage

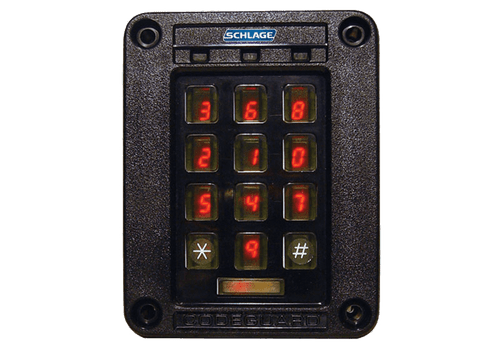

Schlage SERIII-W-GR, Scramble Keypad, Weatherized for Outdoor Use, Wiegand Output, 8-14 VDC, Gray
