ProdataKey RKP Red Keypad Reader
- SKU:
- RKP
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

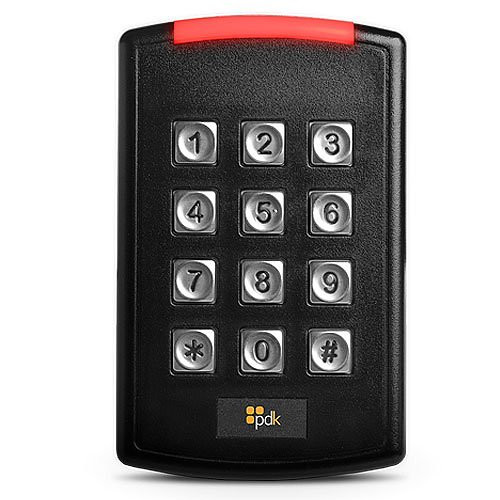

The ProdataKey RKP is a high-performance, multi-technology keypad reader designed for secure access control systems. It supports both high-frequency (13.56 MHz) and low-frequency (125 kHz) credential technologies, allowing for seamless integration with a variety of access methods, including mobile credentials via Bluetooth Low Energy (BLE).
Engineered for durability and reliability, the RKP Red Keypad Reader features an IP55-rated enclosure, making it resistant to dust and water, ideal for both indoor and outdoor installations. With secure OSDP and Wiegand communication protocols, the reader ensures encrypted and reliable data transmission, protecting against unauthorized access.
Key Features
- Dual-Frequency Support – Reads both 125 kHz (low-frequency) and 13.56 MHz (high-frequency) credentials, providing compatibility with various access cards and fobs.
- Secure Communication – Supports OSDP (Open Supervised Device Protocol) and Wiegand, ensuring encrypted, tamper-resistant data transmission.
- Mobile Access via BLE – Compatible with Bluetooth-enabled mobile credentials for a contactless access experience.
- Durable and Weather-Resistant – IP55-rated construction allows for both indoor and outdoor use, offering resistance to dust, moisture, and other environmental factors.
- Easy Installation – Compact design with flexible mounting options, making it ideal for commercial and high-security installations.
- Visual and Audio Feedback – Integrated LED indicators and buzzer provide immediate feedback for user interaction.
Technical Specifications
| Specification | Details |
|---|---|
| Credential Frequency | 125 kHz and 13.56 MHz |
| Output Protocols | OSDP and Wiegand |
| Mobile Access | Bluetooth Low Energy (BLE) |
| Read Range | Up to 4 inches (10 cm) |
| Encryption | MIFARE DESFire EV2 |
| Power Requirements | 5 - 16V DC (Linear power supply recommended) |
| Cable Distance | Wiegand up to 500 feet (152 meters) using 22AWG wire |
| Protection Rating | IP55 (resistant to dust and water) |
| Operating Temperature | -31°F to 140°F (-35°C to 60°C) |
| Dimensions | 3.25” x 5.1” x 0.71” (82.5 mm x 129.5 mm x 18 mm) |
| Weight | 5.3 ounces (0.33 lbs / 150 grams) |
The ProdataKey RKP Red Keypad Reader is designed for secure and efficient access control, offering advanced features, a durable build, and easy integration with existing systems. It is ideal for commercial buildings, office spaces, and high-security applications.
Installation Manual & User Guide
Datasheet & Technical Specifications
