Dortronics 48500 Series Mantrap Controllers 2 - 5 Door PLC Interlock Controller, Field Configurable, DC Powered, Mounted in Encloser, any Combination Locked or Unlocked

$1,573.33

SKU:: 48500

Usually Ships: 1-2 Business Days

Low Prices

Superior Selection

In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Description
Resources
Reviews

The Dortronics 48500 Series is a user‑programmable PLC interlock controller designed for mantrap and controlled access systems requiring coordinated control of 2 to 5 doors. It is ideal for environments where only one door should be open at a time or doors are interlocked in a specific sequence. The controller supports flexible field configuration, adjustable timing functions, and integration with existing access control systems, making it suitable for commercial, industrial, and high-security applications.

Key Features

Supports 2–5 Doors: Controls interlock sequences for up to five doors in any combination of locked or unlocked configuration.
Field Configurable: Installer-adjustable logic allows configuration of door sequence, fail-safe/fail-secure operation, and timing without specialized software.
Adjustable Timers: Three onboard timers manage propped door alarms, panic release unlock time, and unlock pause for request-to-exit delays.
Access Control Compatible: Works with any access control system using dry contact inputs and mirrors door status back to panels or consoles.
Traffic Light & Alarm Outputs: Provides outputs for LED indicators and alarm devices.
Versatile Mounting: Available as a standalone controller board or a fully enclosed powered unit (model #48501) including enclosure and DC power supply.

Typical Applications

Security mantraps in banks, retail, and government facilities
Airlocks and cleanroom access control
Controlled transitions between secure zones
Integration with access control and alarm systems

Technical Specifications

Controller Type: PLC interlock controller for 2–5 doors
Power Options:
- Enclosed powered unit (48501) with Class 2 DC power supply
- Standalone PCB controller (48500) for integration with existing power sources
Inputs: Door status, request for access, panic release, interlock override
Outputs: Lock control relays, traffic indicator outputs, alarm outputs
Timers: Three adjustable onboard timers for alarm and unlock sequencing
Mounting: DIN-rail board or fully enclosed NEMA-style housing (model-dependent)

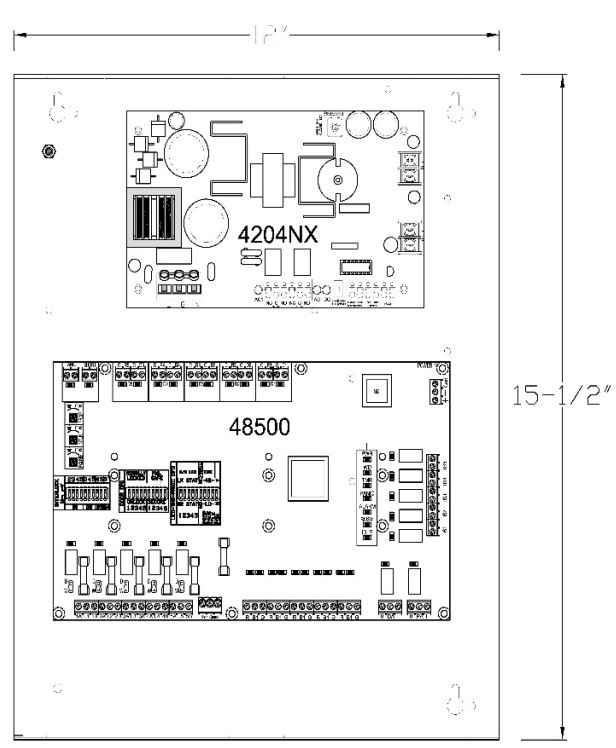

Dimensions (Enclosure): Approx. 12″ × 15½″ × 4½″

Estimated Weight

Enclosed Powered Unit (48501): ~ 8–12 lb (128–192 oz)
Standalone PCB Controller (48500): ~ 1–2 lb (16–32 oz)

Note: Weight is estimated based on typical enclosure and power supply sizes; exact weight may vary depending on configuration.

Data Sheet & Resources

48500 Series PLC Interlock Controller Datasheet (PDF) – Technical overview and wiring details:
➤ Download Datasheet
48500 Series Installation Manual (PDF) – Detailed installation, configuration, and timing instructions:
➤ Download Manual
48501 Enclosed Unit Mounting Diagram (PDF) – Layout and mounting instructions for powered enclosure:
➤ Download Mounting Diagram
