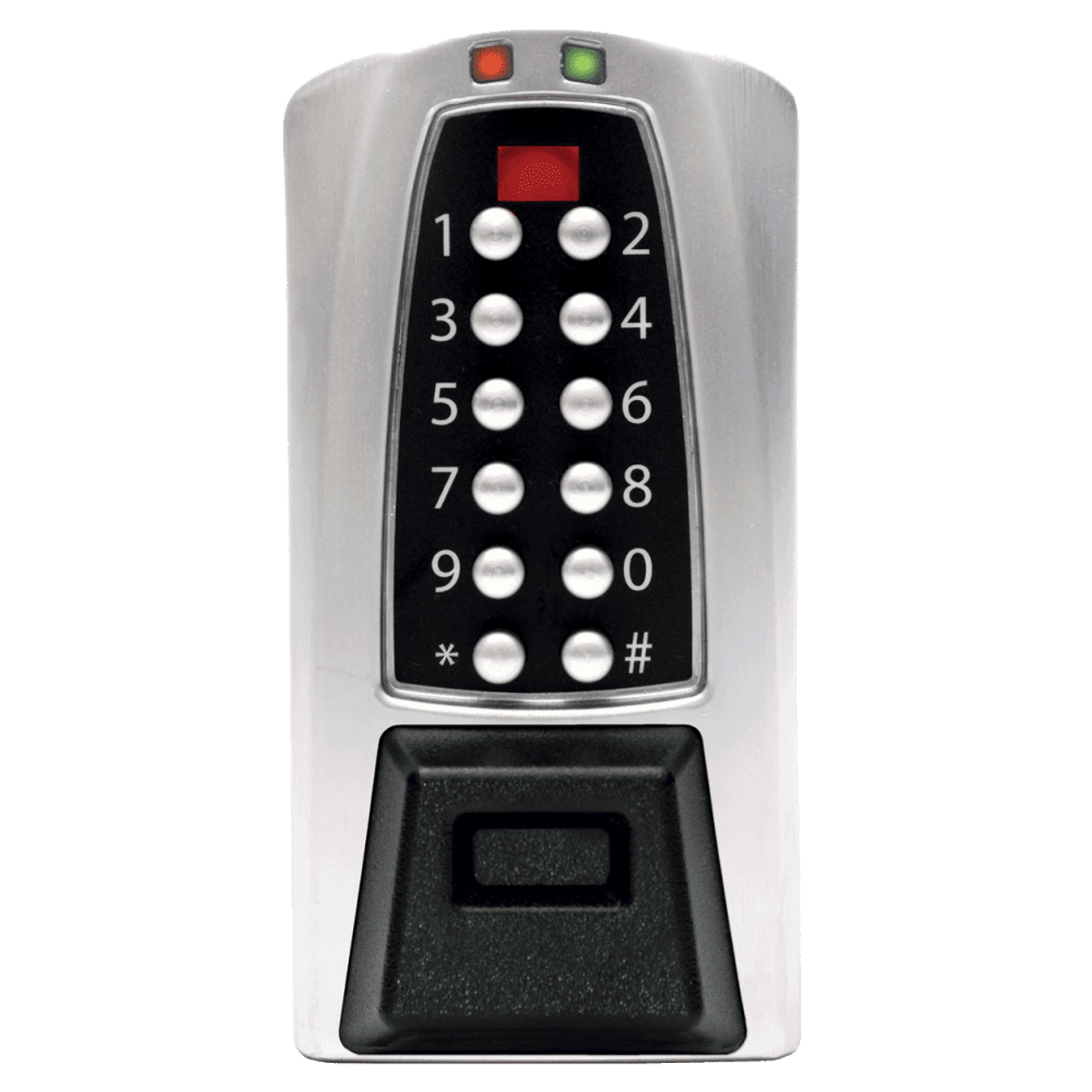

DormaKaba E5770-626-41, E-Plex 5770 Stand Alone Prox Access Controller, Satin Chrome

(No reviews) Write a Review
MSRP: $1,647.00
$1,046.00
Save $601.00
SKU:
E5770-626-41
Usually Ships: 1-2 Business Days
Low Prices
Superior Selection
In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

DormaKaba E5770-626-41, E-Plex 5770 Stand Alone Prox Access Controller, Satin Chrome

Helping protect people and everything that matters. E-Plex 5x70 Series makes upgrading locking systems easy.
The electronic PIN/Card solution is ideal for dual-swing doors, parking gates, and glass doors. Featuring online-type functionality in a stand-alone model, E-Plex 5x70 series models are easy-to-install. The reader
housings with keypad eliminates problems and costs associated with issuing, controlling, and collecting keys.
The E-Plex 5x70 provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)—E-Plex 5070 and 5270 and/or Cards (PROX—E-Plex 5770).

• Up to 3000 users
• PIN code length adjustable up to 8 digits
• Programming: E-Plex 5770 via optional E-Plex Enterprise or Aurora software (not included).
• Scheduling: Up to 16 different access schedules may be programmed.
• Holiday/Vacation Up to 32 different holiday/vacation blocks may be programmed.
• Operating modes: Access (via Credential); Lockout; Passage (toggled on/off or preprogrammed); Scheduled Access (5270 and 5770 only)
• Anti-tamper lockout is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 20 seconds
• 5 authority access levels let you determine who has privileges to specific lock functions (Six authority levels 5270 and
5770 models)
• Minimum of 9000 stored audit events (with optional software). Maximum 30,000 events (software required)
• Vandal Resistance: Exclusive tamper-switch circuitry in reader housing prevents unauthorized access if unit is
attacked or removed from mounting plate. If tamper is detected, the reader unit emits constant bright blue lights and
all internal wire other than power become passive until unit is reset.



E-Plex Specifications


Code Length: 4 to 8 Digits


Code Capacity: Up to 3000 (dependant on model)


Event Audit Trail: 30,000 - E-Plex 5270 and 5770 (with software)


Environmental:  Indoor/Outdoor


Operating Temperature:  Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)


Construction:  Solid cast housings


Items Supplied:  Installation manual, quick reference guide, operations manual, full-scale template, and required installation hardware


Lock Features:  Audit Trail, Passage Mode


Accessibility:  Americans with Disabilities Act (ADA)


Access Type:  Keypad (PIN)


Fire Rating 3-hour UL/ULC fire rating for A labeled doors


Weight:  5.26 lbs. (2.38 kg)
Power requirements:  12–24 VDC regulated power input from standard, off-the-shelf regulated power supplies. If power is lost, user data and lock parameters are retained in on-board memory. Power supply must have battery backup (battery
located in interior housing cover)

Warranty:   3 Year Manufacturer
