DormaKaba E5070-626-41, E-Plex 5070 Stand Alone Keypad Access Controller, Satin Chrome
- SKU:
- E5070-626-41
DormaKaba E5070-626-41, E-Plex 5070 Stand Alone Keypad Access Controller, Satin Chrome
Helping protect people and everything that matters. E-Plex 5x70 Series makes upgrading locking systems easy.
The electronic PIN/Card solution is ideal for dual-swing doors, parking gates, and glass doors. Featuring online-type functionality in a stand-alone model, E-Plex 5x70 series models are easy-to-install. The reader
housings with keypad eliminates problems and costs associated with issuing, controlling, and collecting keys.
The E-Plex 5x70 provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)—E-Plex 5070 and 5270 and/or Cards (PROX—E-Plex 5770).
• Up to 3000 users
• PIN code length adjustable up to 8 digits
• Programming: E-Plex 5070 at the lock;
• Scheduling: Up to 16 different access schedules may be programmed.
• Holiday/Vacation Up to 32 different holiday/vacation blocks may be programmed.
• Anti-tamper lockout is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 20 seconds
• Minimum of 9000 stored audit events (with optional software). Maximum 30,000 events (software required)
• Vandal Resistance: Exclusive tamper-switch circuitry in reader housing prevents unauthorized access if unit is
attacked or removed from mounting plate. If tamper is detected, the reader unit emits constant bright blue lights and
all internal wire other than power become passive until unit is reset.
E-Plex Specifications
Code Length: 4 to 8 Digits
Code Capacity: Up to 3000 (dependant on model)
Event Audit Trail: 9000 - E-Plex 5070
Environmental: Indoor/Outdoor
Operating Temperature: Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
Construction: Solid cast housings
Items Supplied: Installation manual, quick reference guide, operations manual, full-scale template, and required installation hardware
Lock Features: Audit Trail, Passage Mode
Accessibility: Americans with Disabilities Act (ADA)
Access Type: Keypad (PIN)
Fire Rating 3-hour UL/ULC fire rating for A labeled doors
Weight: 5.26 lbs. (2.38 kg)
Power requirements: 12–24 VDC regulated power input from standard, off-the-shelf regulated power supplies. If power is lost, user data and lock parameters are retained in on-board memory. Power supply must have battery backup (battery
located in interior housing cover)
Warranty: 3 Year Manufacturer
You may also like this
DormaKaba
DormaKaba E5270-626-41, E-Plex 5270 Stand Alone Keypad Access Controller, Satin Chrome
DormaKaba
DormaKaba E5770-626-41, E-Plex 5770 Stand Alone Prox Access Controller, Satin Chrome
Seco-Larm

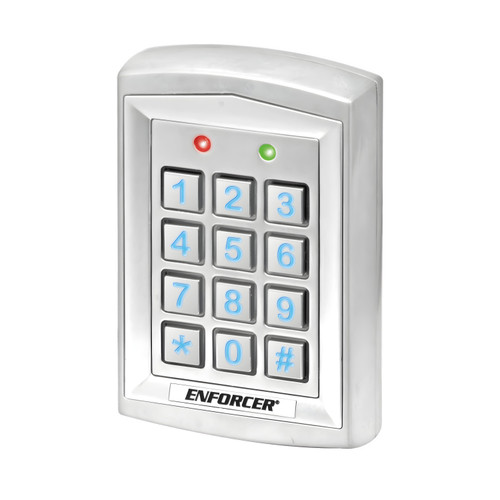

SECO-LARM SK-1323-SDQ, Sealed Housing Weatherproof Stand-Alone Digital Access Keypad
