Camden CM-120WV2, Flush Mount Keypad, Outdoor, Vandal Resistant, Metal Backlit Keypad, 999 users, 12/24V AC/DC
- SKU:
- CM-120WV2
Camden CM-120WV2, Flush Mount Keypad, Outdoor, Vandal Resistant, Metal Backlit Keypad, 999 users, 12/24V AC/DC
Camden Door Controls CM-120 Series selectable stand-alone or wiegand digital keypads
are ideal for virtually any indoor or outdoor application where control of electrically
locked doors (with electric locks, magnetic locks or electric strikes) is required.
These keypads may also be used for activating/deactivating machinery or equipment.
Applications including storage closets, recreation centers, safe rooms, self-storage
facilities, pools/saunas, restaurant freezers and computer rooms.
The second relay can be programmed as an alarm output, door operator relay, or to
activate only with certain pin codes.
On board full wiegand termination with variable protocols allows connection to most
access control systems increasing the versatility of this keypad. Use of the keypad in
wiegand mode disables the wired relay outputs, as well as REX and door contact inputs.
Optional plug-in 2 channel transmitter provides wireless transmission of signals in
addition to wired relay outputs.

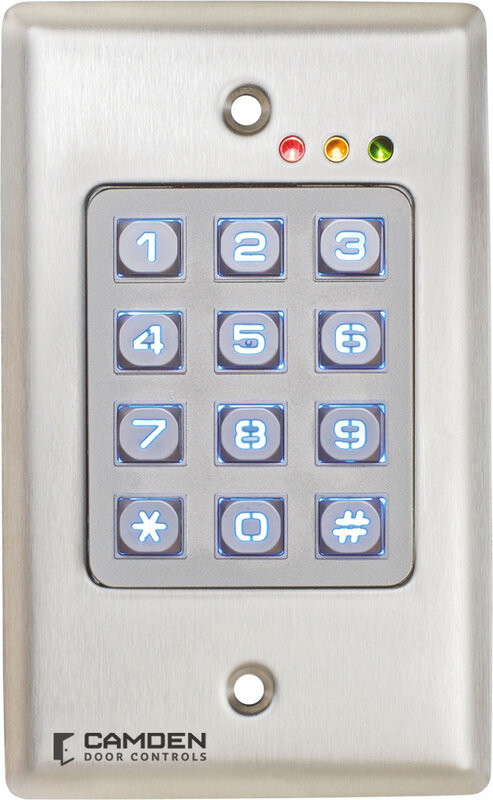

CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.
CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module.
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driver
Weight: 0.6lbs.UPC: 670454166296Country of Origin: CA
| Mounting: |
Single gang, flush
(2) #6 machine and tamper proof screws |
| Input: |
1 x Rex Input / 1 x Door Contact Input
|
| Capacity: |
999 User Codes
|
| Length: |
Variable, Up to 8 Digits (10 Million Possible Codes)
|
| Response Time: |
0.3 Seconds
|
| Time Delay: |
1 to 255 Seconds, or Latched
|
| Dimensions: | 4 1/2” H x 2 3/4” W x 3/4” D (114mm x 70mm x 19mm) |
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
30 mA Standby, 90 mA Max
|
| Output Contact: |
2 x Form 'C' rated 3 A @ 24VDC (disabled when Wiegand output selected)
|
| Weigand Output: |
26 Bit
|
| Temp Range: |
-40°F to + 122°F (-40°C to +50°C)
|
| RF Output: |
Optional Plug-In Transmitter, 2 Channel
|
You may also like this
Camden Door Controls
Camden CM-120TX, Flush Mount Batter Powered Wireless Keypad, Outdoor, Vandal Resistant, Metal Backlit Keypad, Built-in Wireless Transmitter
Camden Door Controls

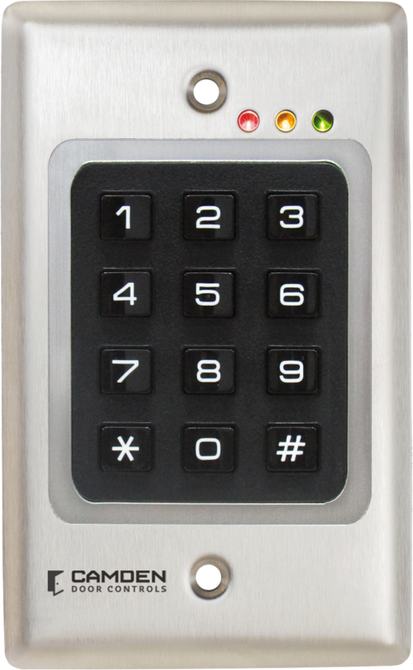

Camden CM-120I, Flush Mount Wired Keypad, Stand alone or Wiegand, 999 users, 12/24V AC/DC
