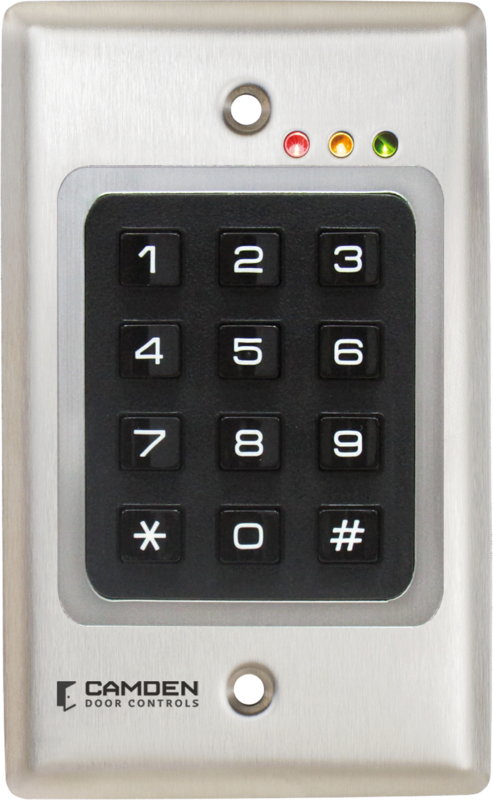

Camden CM-120I, Flush Mount Wired Keypad, Stand alone or Wiegand, 999 users, 12/24V AC/DC

MSRP: $160.00
$117.00
Save $43.00
SKU:
CM-120I
Usually Ships: 1-2 Business Days
Low Prices
Superior Selection
In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Camden CM-120I, Flush Mount Wired Keypad, Stand alone or Wiegand, 999 users, 12/24V AC/DC

CM-120 Series keypads lead the industry in performance and value. ADA compliant
and built to last, these rugged and versatile keypads feature stainless steel
faceplates, single gang flush mounting (enclosures are available for surface mount),
12/24 VAC/DC operation and a complete range of programming features.

Camden Door Controls CM-120 Series selectable stand-alone or wiegand digital keypads
are ideal for virtually any indoor or outdoor application where control of electrically
locked doors (with electric locks, magnetic locks or electric strikes) is required.
These keypads may also be used for activating/deactivating machinery or equipment.
Applications including storage closets, recreation centers, safe rooms, self-storage
facilities, pools/saunas, restaurant freezers and computer rooms.
The second relay can be programmed as an alarm output, door operator relay, or to
activate only with certain pin codes.
On board full wiegand termination with variable protocols allows connection to most
access control systems increasing the versatility of this keypad. Use of the keypad in
wiegand mode disables the wired relay outputs, as well as REX and door contact inputs.
Optional plug-in 2 channel transmitter provides wireless transmission of signals in
addition to wired relay outputs.

  • Flush mount single gang stainless steel faceplate
  • 3 LED's + Piezo Buzzer
  • Request-to-Exit Input
  • Door contact input for anti-tailgating & door open alarm
  • Global lock-out feature
  • Includes tamperproof screws & driver
  Weight: 0.4lbs.
  UPC: 670454121073
  Country of Origin: CA

Mounting:
Single gang, flush
(2) #6 machine and tamper proof screws
Input:
1 x Rex Input / 1 x Door Contact Input
Capacity:
999 User Codes
Length:
Variable, Up to 8 Digits (10 Million Possible Codes)
Response Time:
0.3 Seconds
Time Delay:
1 to 255 Seconds, or Latched
Dimensions:
4-1/2" x 2-3/4" x 3/4"
(114mm x 70mm x 19mm)



Datasheet
