BEA 10ULTIMO, AUTOMATIC SLIDING DOOR SENSOR WITH EXTENDED / ENHANCED SAFETY

BEA’s ULTIMO^TM is a dual technology sensor with flexible safety features for automatic sliding doors. The microwave motion field activates as people or objects approach the door. Meanwhile, three adjustable infrared curtains, each with 32 spots of detection, ensure the safety of pedestrians passing through the door opening.

ULTIMO offers advanced presence detection using ULTI-SHIELD technology, which provides uniform sensitivity across the safety curtains. ULTI-SHIELD technology allows for extended or enhanced infrared curtain positioning, ensures no loss of detection and immunities to environmental disturbances.

The combination of flexible and precise detection fields complements the door’s performance – making ULTIMO ideal for high-traffic environments in hospitals, hotels, airports or retail facilities.

Features

Extended Safety

Three infrared curtains offer deeper & broader safety coverage in front of the door panels

Enhanced Safety

Positioning the innermost infrared safety curtain through the threshold allows for sustained presence detection in the door opening

Easy Installation

Eight visible red alignment spots are projected onto the ground, verifying the location of the infrared curtains and helping to increase the accuracy of setup

Convenient Programming

Easily define the microwave pattern shape, adjust the infrared curtain width and review troubleshooting diagnostics via a menu-driven LCD

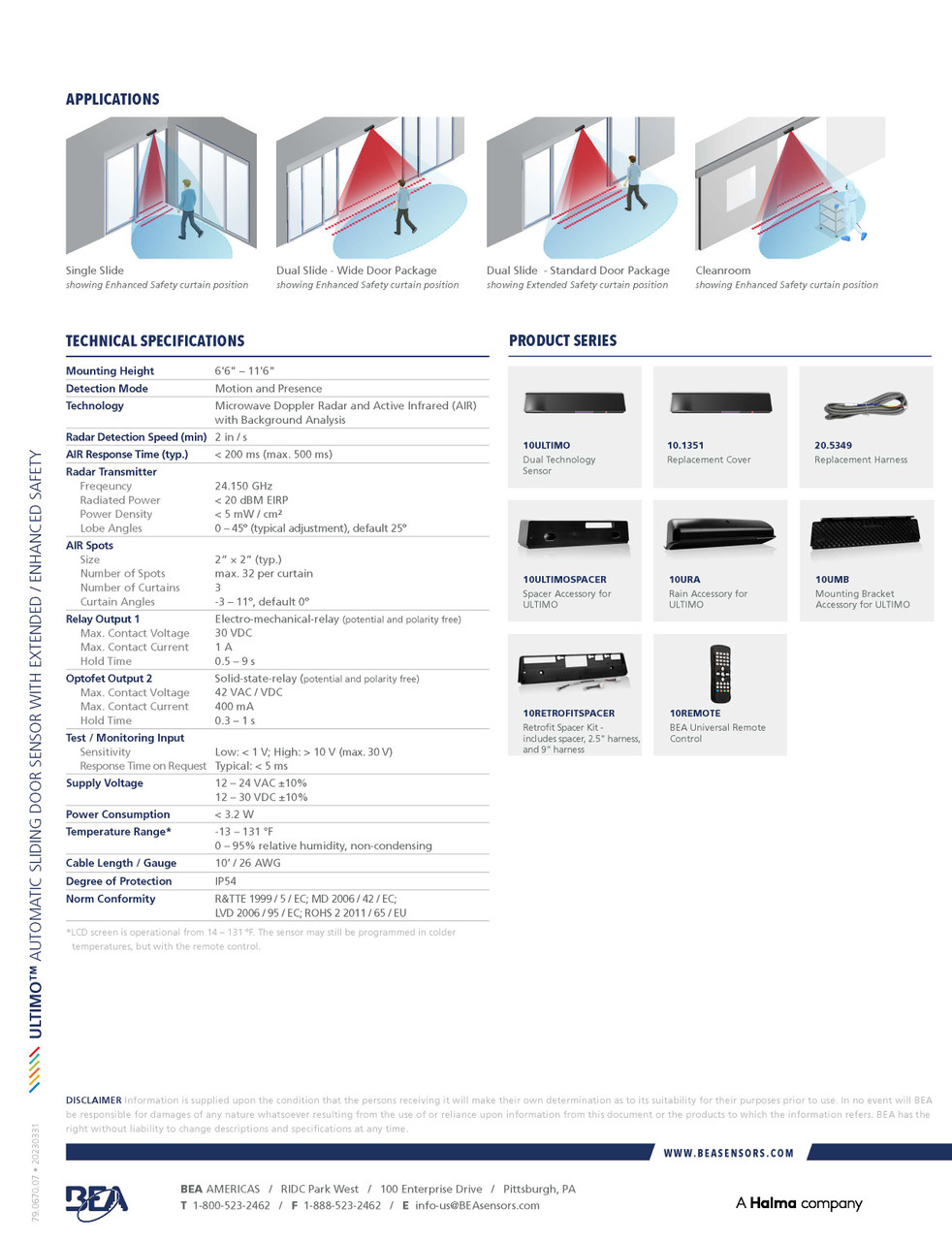

Table of specifications

Mounting Height	6'6" – 11'6"
Detection Mode	Motion and Presence
Technology	Microwave Doppler Radar and Active Infrared (AIR) with Background Analysis
Radar Detection Speed (min)	2 in / s
AIR Response Time (typ.)	< 200 ms (max. 500 ms)
Radar Transmitter Frequency Radiated Power Power Density Lobe Angles	24.150 GHz < 20 dBM EIRP < 5 mW / cm² 0 – 45º (typical adjustment), default 25º
AIR Spots Size Number of Spots Number of Curtains Curtain Angles	2” × 2” (typ.) max. 32 per curtain 3 -3 – 11º, default 0º
Relay Output Max. Contact Voltage Max. Contact Current Hold Time	Electro-mechanical-relay (potential and polarity free) 30 VDC 1 A 0.5 – 9 s
Optofet Output Max. Contact Voltage Max. Contact Current Hold Time	Solid-state-relay (potential and polarity free) 42 VAC / VDC 400 mA 0.3 – 1 s
Test / Monitoring Input Sensitivity Response Time on Request	Low: < 1 V; High: > 10 V (max. 30 V) Typical: < 5 ms
Supply Voltage	12 – 24 VAC ±10% 12 – 30 VDC ±10%
Power Consumption	< 3.2 W
Temperature Range*	-13 – 131 °F 0 – 95% relative humidity, non-condensing
Cable Length / Gauge	10’ / 26 AWG
Degree of Protection	IP54
Norm Conformity	R&TTE 1999 / 5 / EC; MD 2006 / 42 / EC; LVD 2006 / 95 / EC; ROHS 2 2011 / 65 / EU
