BEA 10SPARROW, VARIABLE MOUNT INDUSTRIAL MOTION SENSOR

(No reviews) Write a Review

MSRP: $470.79

$288.20

Save $182.59

SKU:: 10SPARROW

Usually Ships: 1-2 Business Days

Low Prices

Superior Selection

In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Description
Resources
Reviews

BEA 10SPARROW VARIABLE MOUNT INDUSTRIAL MOTION SENSOR

BEA’s SPARROW is a highly flexible motion sensor designed to detect people and vehicles in a variety of industrial, security and pedestrian applications.

The SPARROW’s adjustable microwave antenna can be rotated ±120 degrees to create different sensing fields, capable of detecting bi-directional traffic (two way), unidirectional (approach only) and unidirectional away (departure only).

The SPARROW is designed to operate in industrial or harsh environments. It is ideal for motion detection applications including vehicle sensing, access control and warning indication.

Features

Flexible mounting

Mounting height from 6 ½ feet to 20 feet

Adjustable for optimal detection

Ten sensor sensitivity settings can be applied to optimize detection

Weather resistant

IP64 rated enclosure for industrial and harsh environments

Customizable settings

Immunity settings can be adjusted to reduce unwanted detections caused by rain, snow and header vibrations

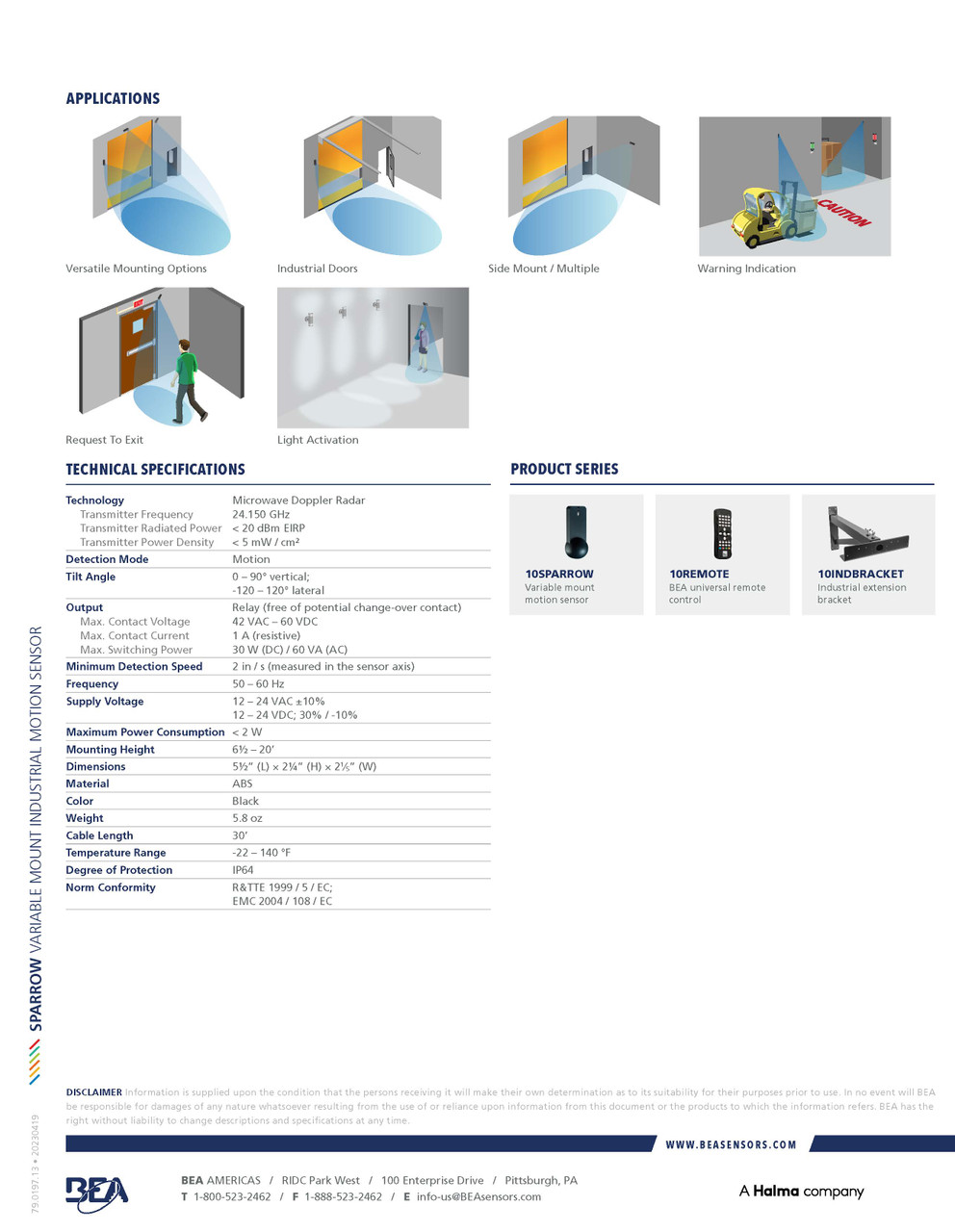

Table of specifications

Technology Transmitter Frequency Transmitter Radiated Power Transmitter Power Density	Microwave Doppler Radar 24.150 GHz < 20 dBm EIRP < 5 mW / cm²
Detection Mode	Motion
Tilt Angle	0° – 90° vertical; -120 – 120° lateral
Output Max. Contact Voltage Max. Contact Current Max. Switching Power	Relay (free of potential change-over contact) 42 VAC – 60 VDC 1 A (resistive) 30 W (DC) / 60 VA (AC)
Minimum Detection Speed	2 in / s (measured in the sensor axis)
Frequency	50 – 60 Hz
Supply Voltage	12 – 24 VAC ±10% 12 – 24 VDC 30% / –10%
Maximum Power Consumption	< 2 W
Mounting Height	6 ½ – 20’
Dimensions	5 ½” (L) × 2 ¼” (H) × 2 ¹⁄₅” (W)
Material	ABS
Color	Black
Weight	5.8 oz
Cable Length	30’
Temperature Range	-22 – 140 °F
Degree of Protection	IP64
Norm Conformance	R&TTE 1999/5/EC; EMC 2004/108/EC
