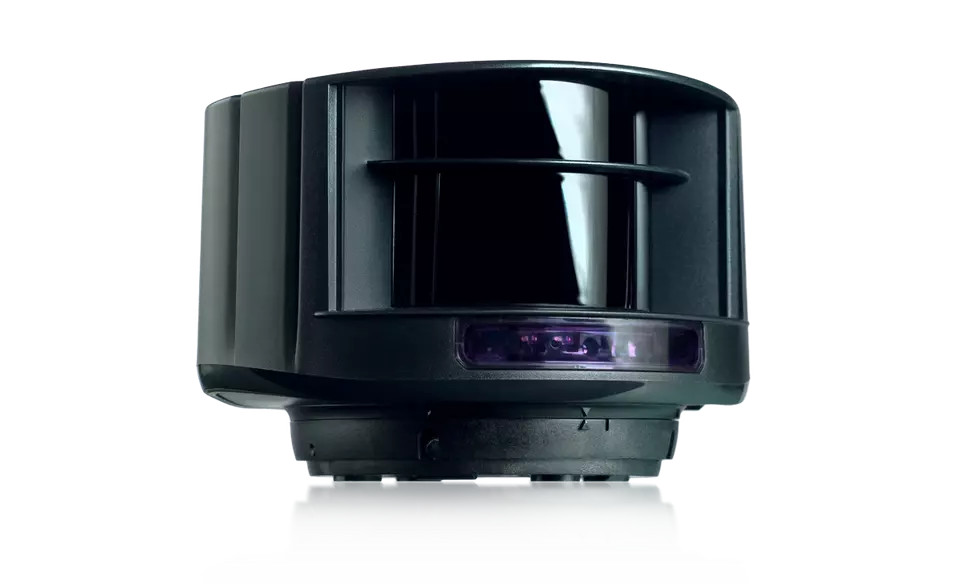

BEA 10LZRI30 LASER Scanner for Industrial Automation

LASER SCANNER FOR INDUSTRIAL AUTOMATION

BEA’s LZR^®-I30 is a LASER-based Time-of-Flight sensor. This high precision technology ensures accurate object detection. The product configuration provides four LASER-based curtains offering a three dimensional safety zone.

The sensor is designed for the detection of people and vehicles, in both indoor and outdoor environments. Its detection accuracy makes this sensor ideal for high performance industrial doors, vehicle flow safety, perimeter protection and variety of applications.

The LZR-I30 is housed in an IP65 rated enclosure and can be installed in outdoor, industrial and other harsh environments. Three visible LED spots provide accurate reference points when adjusting the tilt angle. Parameter adjustments can be made with a BEA universal remote control.

Features

3-dimensional safety zone

Four curtains of detection each capable of 360 in × 360 in (30 ft × 30 ft)

Highly accurate detections

Detects objects as small as 2 inches at 30 feet away, depending on application

Energy savings

Has the ability to ignore dynamic ground conditions and extreme weather

Easily adjustable

Three visible LEDs for pattern alignment

Table of specifications

Technology	LASER scanner, Time-of-Flight measurement
Detection Mode	Motion / Presence (EN 12453 Typ. E)
Max. Detection Range	30’ × 30’
Remission Factor	> 2%
Emission Characteristics IR LASER Red Visible LASER	Wavelength 905 nm; output power 0.10 mW (CLASS 1)) Wavelength 635 nm; output power 0.95 mW (CLASS 2)
Supply Voltage	10 – 35 VDC @ Sensor Terminal (to be operated from SELV compatible power supplies only)
Peak Current at Power-On	1.8 A (Max. 80 ms @ 35 V)
Power Consumption	< 5 W
Response Time	Typ. 20 ms; max. 80 ms (+ output activation delay)
Output Max. Switching Voltage Max. Switching Current	2 electronic relays (galvanic isolated – polarity free) 35 VDC / 24 VAC 80 mA ( resistive )
LED-Signal	1 Blue LED: Power-on 1 Orange LED: Error status 2 Bi-colored LEDs: Detection / Output Status (Green: no detection; Red: detection)
Dimensions Housing 10LBA	5” (W) × 2 ¾”(H) × 3 ²⁄₃ (D) Adds ¹¹⁄₂₀”
Cable Length	30’
Material	PC / ASA
Color	Black
Rotation Angle on Bracket	±5° (Lockable)
Tilt Angle on Bracket	±3°
Degree of Protection	IP65
Temperature Range	-22 – 140 °F if powered 14 – 140 °F if unpowered
Humidity	0 – 95% non-condensing
Vibrations	< 2 G
Pollution on Front Screens	Max. 30% ; Homogenous
Test Body Dimensions	700 mm × 200 mm × 200 mm (test body A according to EN 12445)
Norm Conformity	2006 / 95 / EC: LVD; 2002 / 95 / EC: RoHS; 2004 / 108 / EC: EMC; 2006 / 42 / EC: MD; EN 12453:2000 chapter 5.1.1.6, chapter 5.5.1 Safety device E; EN 12978:2009; EN ISO 13849-1:2008 CAT2, Pl “d”; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005; EN 61000-6- 2:2005; EN 61000-6-3:2006; IEC 61496-1:2009; EN 61496-3: 2008 ESPE Type 2; EN 62061:2005 SIL 2
