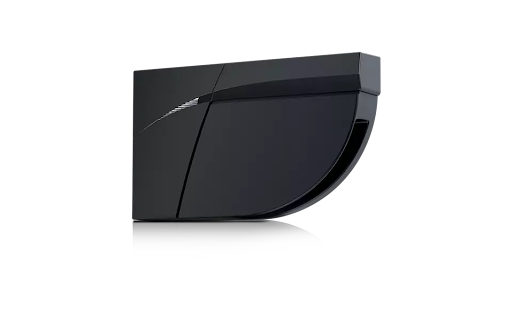

BEA 10LZRFLATSCAN-LELB, Low energy safety system for left door mount, Black

(No reviews) Write a Review

MSRP: $898.77

$652.00

Save $246.77

SKU:: 10LZRFLATSCAN-LELB

Usually Ships: 1-2 Business Days

Low Prices

Superior Selection

In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Description
Resources
Reviews

BEA 10LZRFLATSCAN-LELB Low energy safety system for left door mount, Black

SINGLE CURTAIN STAND-ALONE, DOOR-MOUNTED SAFETY SYSTEM FOR FULL AND LOW ENERGY SWING DOORS

BEA’s LZR^®-FLATSCAN SW is a LASER-based Time-of-Flight presence sensor for use as a stand-alone safety sensor on automatic pedestrian swing doors. This solution can also be used as a reactivation sensor on the approach side of low energy doors.

This superior technology generates 170 detection points across a single curtain, which allows LZR-FLATSCAN SW to cover the entire face of a single door leaf including the hinge area.

Finger Detection Technology™ utilizes 100 detection points within the hinge area of the door, protecting hands and fingers while the door is in motion.

The LZR-FLATSCAN SW is capable of exceeding the 156.10 section 8.2.2.3 standard for detection area and meets section 8.1.4 for monitoring

Features

Leading edge safety

Detection area extends beyond the leading edge of the door for enhanced safety

Hand Gesture Setup™

Easy door width programming using Hand Gesture Setup™ reduces configuration time

UL10B/C Listed

Fire rated for up to one hour

Reduced uncovered zone

LASER technology provides a reduced uncovered zone of down to 3/4 inch

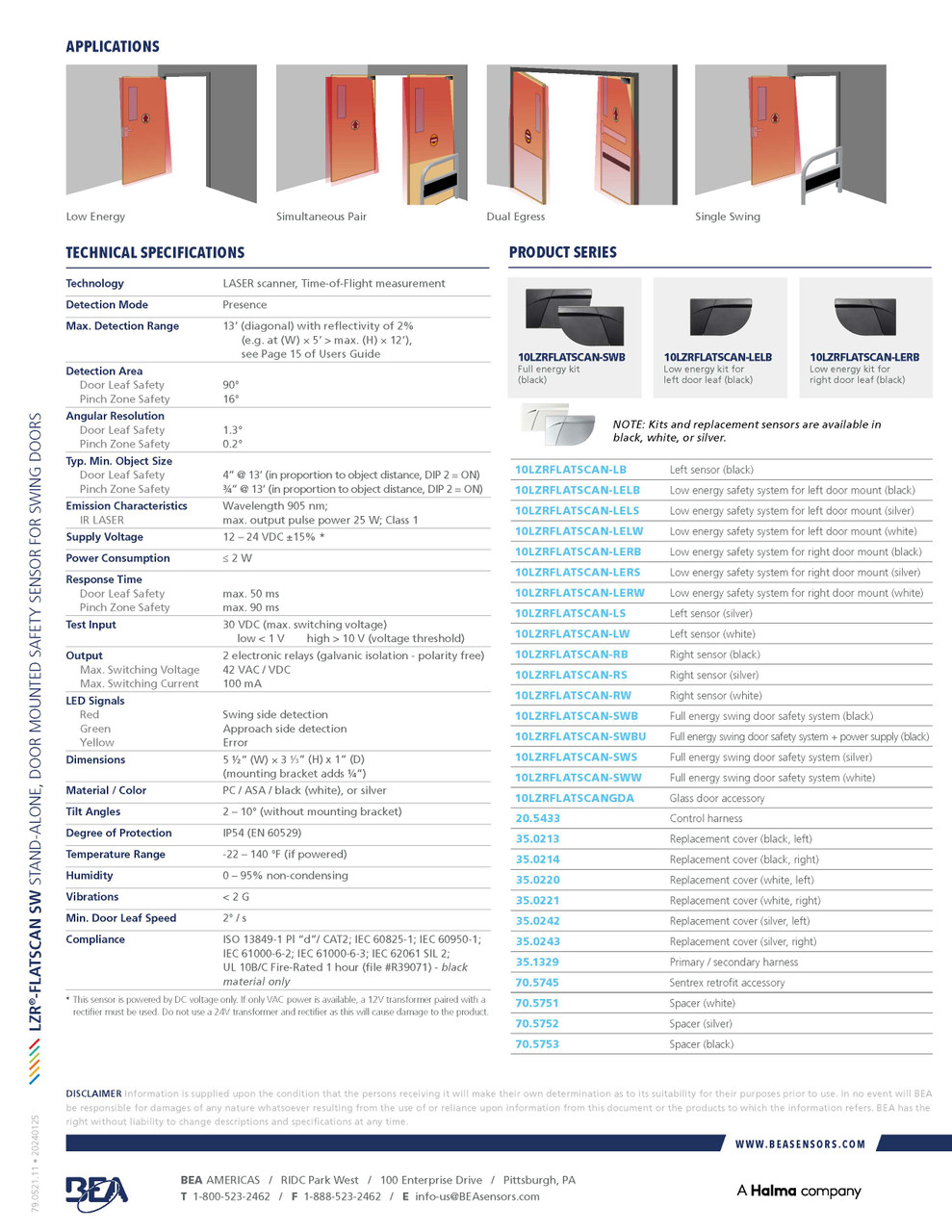

Table of specifications

Technology	LASER scanner, time-of-flight measurement
Detection Mode	Presence
Max. Detection Range	13’ (diagonal) with reflectivity of 2% (e.g. at W = 5’ → max. H = 12’), see Page 15 of Users Guide
Detection Area Door Leaf Safety Pinch Zone Safety	90° 16°
Angular Resolution Door Leaf Safety Pinch Zone Safety	1.3° 0.2°
Typ. Min. Object Size Door Leaf Safety Pinch Zone Safety	4“ @ 13’ (in proportion to object distance, DIP 2 = ON) ¾“ @ 13’ (in proportion to object distance, DIP 2 = ON)
Emission Characteristics IR LASER	Wavelength 905 nm; max. output pulse power 25 W; Class 1
Supply Voltage	12 − 24 VDC ±15%
Power Consumption	≤ 2 W
Response Time Door Leaf Safety Pinch Zone Safety	max. 50 ms max. 90 ms
Test Input	30 VDC (max. switching voltage) low < 1 V high > 10 V (voltage threshold)
Output Max. Switching Voltage Max. Switching Current	2 electronic relays (galvanic isolation - polarity free) 42 VAC / VDC 100 mA
LED Signals Red Green Yellow	Swing side detection Approach side detection Error
Dimensions	5 ½“ (W) × 3 ¹⁄₃“ (H) × 1“ (D) (mounting bracket adds ¼“)
Material / Color	PC / ASA / Black, White or Silver
Tilt Angles	2 − 10° (without mounting bracket)
Degree of Protection	IP54 (EN 60529)
Temperature Range	-22 − 140 °F (if powered)
Humidity	0 − 95% non-condensing
Vibrations	< 2 G
Min. Door Leaf Speed	2° / s
