Bea

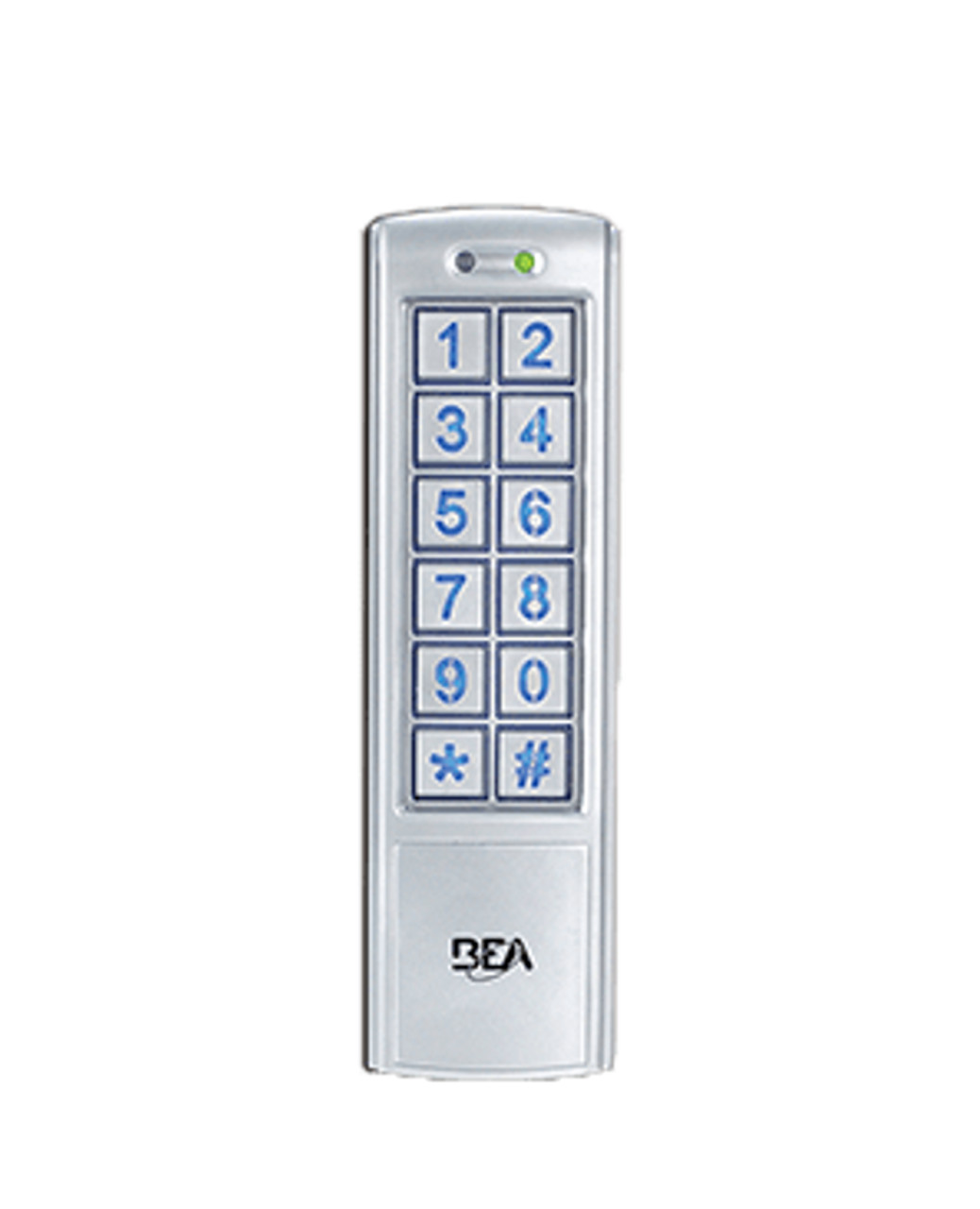

BEA 10KEYPADUSL, 1-3/4" x 6" Slim Universal Keypad
- SKU:
- 10KEYPADUSL
The 10KEYPADUSL Slim Line standalone Access Keypad is now available from North Shore Commercial Door. The BEA keypad is designed to be installed into security systems with electric strikes, electromagnetic locks, and other devices requiring ON/OFF or momentary control inputs. An IP66 rating makes the keypad perfect for residential outdoor use as well as in harsh industrial environments. The highly flexible interface allows for up to 1,010 individual user codes while its backlit numbers ensure high visibility in any environment. Equipped standard with a tamper proof alarm and with multiple relays for two-zone applications, the Slim Line standalone access keyboard is a reliable and cost-effective access control solution.
Product Highlights:
- IP66 rating, waterproof and dustproof
- Can be used in indoor or outdoor environments
- Designed for security systems with electromagnetic locks, electric strikes, & other devices requiring ON/OFF or momentary control inputs
- Allows for 1,010 user codes
- Backlit number pad for high visibility
- Two-zone feature provides 2 relays and 2 exit button outputs for two-zone applications
- Easy programming completed entirely from keypad
- Battery backup keeps codes and settings in case of power loss
Product Specs:
- Supply Voltage: 12-24 VAC/VDC (DO NOT EXCEED 30VDC or 24VAC)
- Standby Current: ≤ 30mA
- Working Current: ≤ 160mA
- Max user codes: 110 (zone 1: 1000 users, zone 2: 10 users)
- Relock time: 0-99 seconds
- Output: 2 relays (free of potential change-over contact)
- Max. contact voltage: 42 VAC/VDC
- Max. contact current: 1 A (resistive)
- Max. switching power: 30 W (VDC)/48 VA (VAC)
- Cable Length: 3 ft
- Operating temperature: -22 - 150°F
- Operating humidity: 0 - 95% (non-condensing)
- IP rating: IP66 (waterproof and dustproof)
- Certification: CE, RoHS
- Backlight: Blue keypad illumination
Dimensions:
- Width: 1-7/10 inches
- Height: 5-9/10 inches
- Depth: 19/20 inches
