Bea 10keypadu Universal Keypad
- SKU:
- 10KEYPADU
SSL Secure Payment
We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

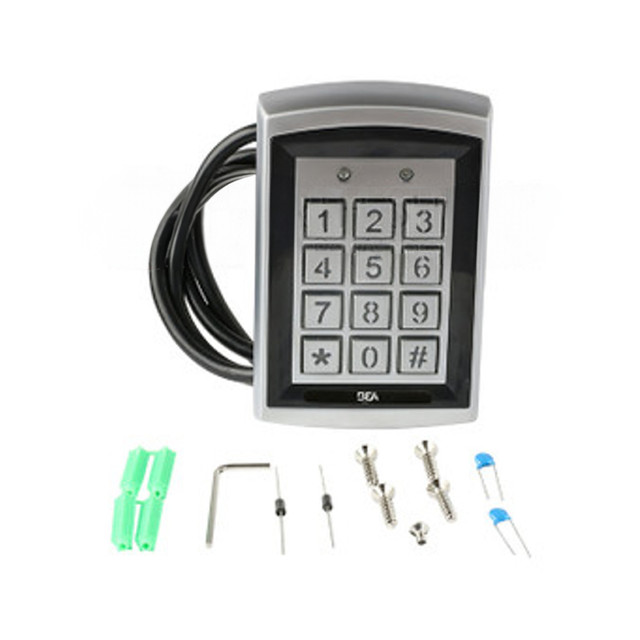

BEA's 10KEYPADU Universal Keypad is now available at North Shore Commercial Door! The 10KEYPADU Universal Keypad is a reliable, affordable solution for your access control needs. It can be fully integrated into security systems with electromagnetic locks, electric strikes and other equipment requiring on/off or momentary control inputs. All programming is executed from the keypad. Non-volatile memory means codes and instructions will remain when power is removed. 10KEYPADU allows for up to 1010 user codes. The IP66 rating means this device can withstand harsh industrial or outdoor environments. Tamper alarm feature is incorporated as a standard option. Dual zone feature provides 2 relays and 2 exit button outputs for 2 zone applications. Backlit numbers make it easy to use in dimly-lit surroundings.
TECHNICAL INFORMATION
- Supply Voltage: 12 - 24 VAC / VDC (DO NOT EXCEED 30 VDC or 24 VAC)
- Standby Current: ≤ 30 mA
- Working Current: ≤ 160 mA
- Max User Codes: 1010 (Zone 1: 1000 Users, Zone 2: 10 Users)
- Relock Time: 0 - 99 Seconds
- Output: 2 Relays (Free of Potential Change-Over Contact)
- Max. Contact Voltage: 42 VAC / VDC
- Max. Contact Current: 1 A (Resistive)
- Max. Switching Power: 30 W (DC) / 48 VA (AC)
- Cable Length: 3-ft.
- Operating Temperature: -22° F - 158° F
- Operating Humidity: 0 - 95% (Non-Condensing)
- IP Rating: IP66, Waterproof, Dust Proof
- Dimensions: 3.0-in. (W) x 4.7-in. (H) x 0.9-in. (D)
- Certifications: CE, RoHS
- Backlight: Blue Keypad Illumination
PRODUCT HIGHLIGHTS
- Item Number: 10KEYPADU
- Universal Keypad by BEA
- Reliable, affordable solution for access control
- Can be fully integrated into security systems with electromagnetic locks, electric strikes and other equipment requiring on/off or momentary control inputs
- Programming executed from the keypad
- Non-volatile memory means codes and instructions will remain when power is removed
- Allows for up to 1010 user codes
- IP66 rating means the device can withstand harsh industrial or outdoor environments
- Tamper alarm feature incorporated as a standard option
- Dual zone feature provides 2 relays and 2 exit button outputs for 2 zone applications
- Backlit numbers make it easy to use in dimly-lit surroundings
