BEA 10IS40 Dual technology motion and presence sensor for standard mounting heights

MOTION & PRESENCE SENSOR FAMILY
FOR INDUSTRIAL DOORS

BEA’s IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications.

The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA’s IS40XL can be mounted from 6 ½ feet to 11 ½ feet.

Housed in a rugged IP65 rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.

Features

Energy savings

Bidirectional, unidirectional approach and unidirectional depart microwave detection options

Adjustable detection settings

Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection

Customizable patterns

Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment

Reduce false detections

Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light and sun

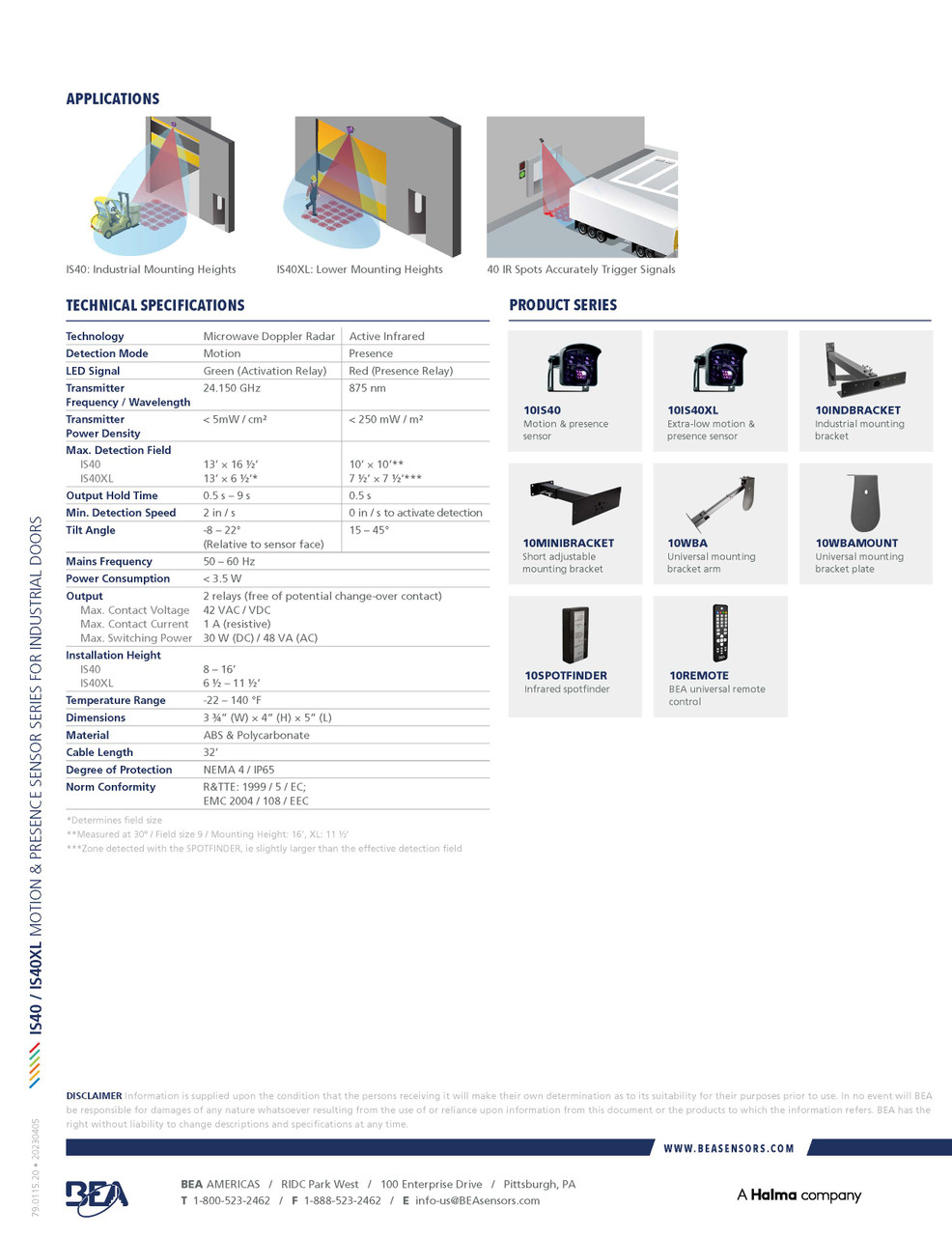

Table of specifications

Technology	Microwave Doppler Radar	Active Infrared
Detection Mode	Motion	Presence
LED signal	Green (Activation Relay)	Red (Presence Relay)
Transmitter Frequency / Wavelength	24.150 GHz	875 nm
Transmitter Power Density	< 5 mW / cm²	< 250 mW/m²
Max. Detection Field IS40 IS40XL	13’ × 16 ½‘ 13’ × 6 ½‘	10’ × 10’ 7 ½‘ × 7 ½‘
Output Hold Time	0.5 s – 9 s	0.5 s
Min. Detection Speed	2 in / s	0 in / s to activate detection
Tilt Angle	-8 – 22° and 15 – 45° (Relative to sensor face)	15º – 45º
Mains Frequency	50 – 60 Hz
Power Consumption	< 3.5 W
Relay Output Max. Contact Voltage Max. Contact Current Max. Switching Power	2 relays (free of potential change-over contact) 42 VAC / VDC 1 A (resistive) 30 W (DC) / 48 VA (AC)
Installation Height IS40 IS40XL	8 – 16’ 6 ½ – 11 ½’
Temperature Range	−22 ºF – 140 ºF
Dimensions	3 ³⁄₄” (W) × 4” (H) × 5” (L)
Materials	ABS & Polycarbonate
Cable Length	32’
Degree of Protection	NEMA 4 / IP65
Norm Conformance	R&TTE: 1999/5/EC; EMC 2004/108/EEC
