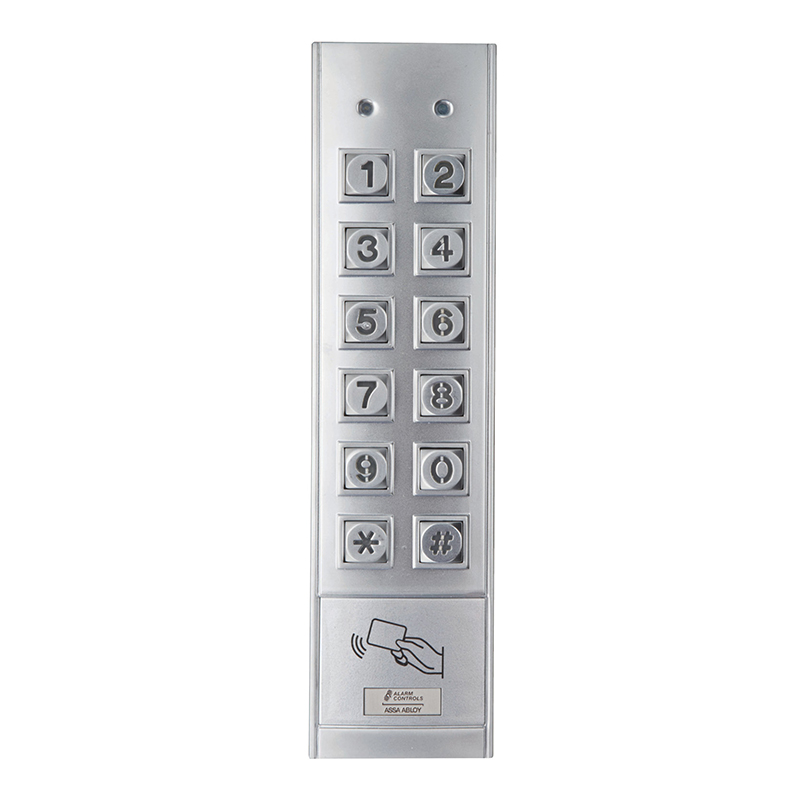

Alarm Controls KP-300 Digital Keypad Mullion Mount Weather Resistant Keypad with Built-in Card Reader

(No reviews) Write a Review
MSRP: $285.00
$189.50
Save $95.50
SKU:
KP-300
Usually Ships: 1-2 Business Days
Low Prices
Superior Selection
In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

Alarm Controls KP-300 Digital Keypad Mullion Mount Weather Resistant Keypad with Built-in Card Reader

Product Features

  • Narrow stile mullion mount with die cast zinc alloy housing
  • 10-digit operation (10 digits plus * and # keys)
  • Operates with card only, user code and card, or user code only
  • Multiple outputs allow control of up to two devices (1000 users on output 1, 100 on output 2)
  • All users can be programmed for card and/or codes at the device
  • 50 Visitor cards and/or codes can be programmed for one time use or with time limit at the device
  • Programmable passage and false-code lockout mode capabilities
  • Built-in tamper switch
  • Green and yellow LEDs for status and programming feedback
  • Fail safe or fail secure capable
  • Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
  • For indoor or outdoor applications
Weights & Dimensions
  • Keypad Depth : 1
  • Keypad Height : 7-39/500
  • Keypad Width : 1-203/250
  • _Shipping Weight : 1
Electrical
  • Input Operating Current : 60mA at rest; 95 mA active
  • Input Operating Voltage : 12 VDC nominal, 11-15 VDC
  • Contact Action : N/O and N/C dry contacts
  • Outputs : Output Relay 1: SPDT rated 2A at 24 VDC max Output Relay 2: SPDT rated 1A at 24 VDC max
Environmental
  • Maximum Operating Temperature : 158
  • Minimum Operating Temperature : -4
  • Operating Humidity : 5-95% relative humidity non-condensing
Alarm Controls KP-300 Keypads Operating Manual

Alarm Controls KP-300 Digital Keypad 2023 Catalog Page
