Alarm Controls KP-200, Digital Keypad Self-contained, Vandal Resistant Digital Keypad

(No reviews) Write a Review
MSRP: $285.00
$189.50
Save $95.50
SKU:
KP-200
Usually Ships: 1-2 Business Days
Low Prices
Superior Selection
In Stock and Ready to Ship

Have a question or need a quote?

SSL Secure Payment

We take pride in our swift and efficient order processing. Rest assured, once you place your order, it will be promptly processed and dispatched the very next working day.

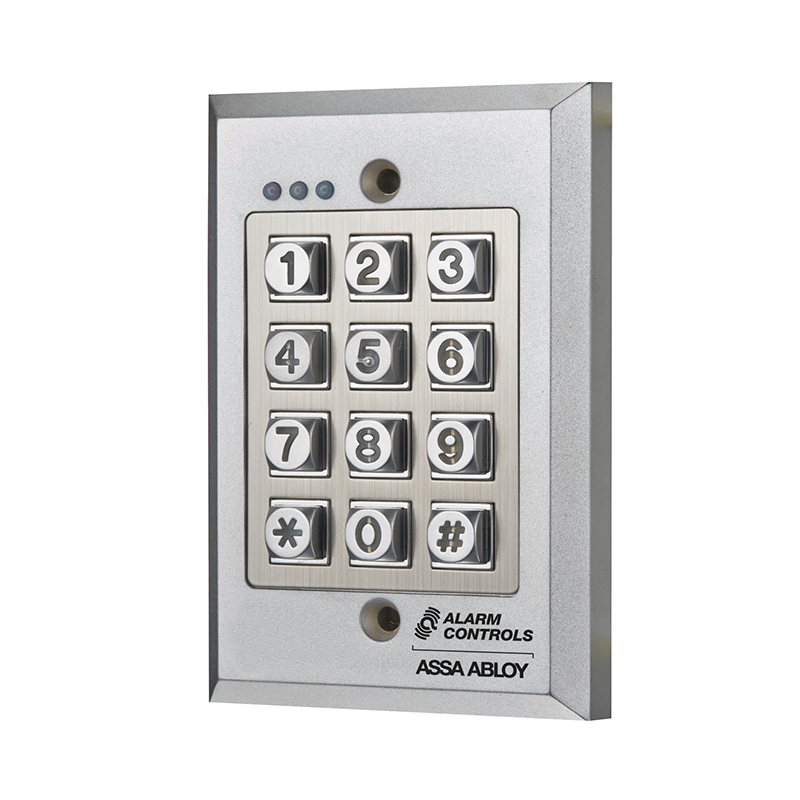

Alarm Controls KP-200, Self-contained digital keypad.

KP-200 is vandal resistant and designed for indoor applications.

Product Features

  • Surface mounted
  • True 10-digit operation (10 digits plus * and # keys)
  • Capacity up to 100 user codes, length from 4 to 8 digits
  • Fully programmable from the keypad
  • Programmable passage and false code lockout mode capabilities
  • Built-in tamper switch
  • Red, green, and yellow LEDs for status and programming feedback
  • Request to Exit (REX) input
  • Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
  • For indoor applications
  • 3 year warranty
Weights & Dimensions
  • Keypad Depth : 0-3/5
  • Keypad Height : 4-3/4
  • Keypad Width : 3-1/5
  • Shipping Weight : 1
Electrical
  • Operating Current : 78 mA relay opening; 16 mA at rest
  • Operating Voltage : 12 or 24 VAC or VDC, auto sensing
  • Contact Action : N/O or N/C Dry contacts
  • Output Relay : Output 1 relay: SPDT contact rating: 1A at 24 VDC Output 2 relay: SPDT contact rating: 1A at 24VDC; Jumper selectable
Environmental
  • Maximum Operating Temperature : 158
  • Minimum Operating Temperature : -4
Alarm Controls KP-200 Keypads Operating Manual

Alarm Controls KP-200 2023 Catalog Page
